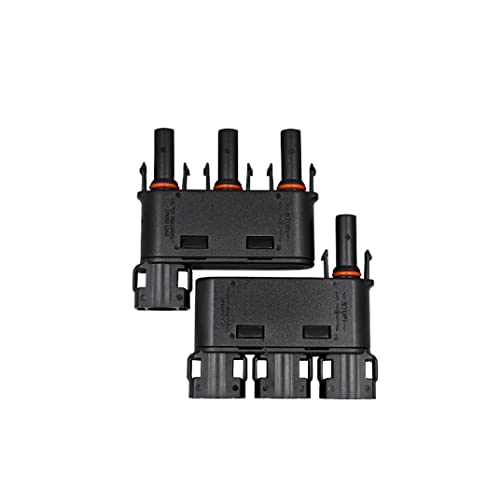

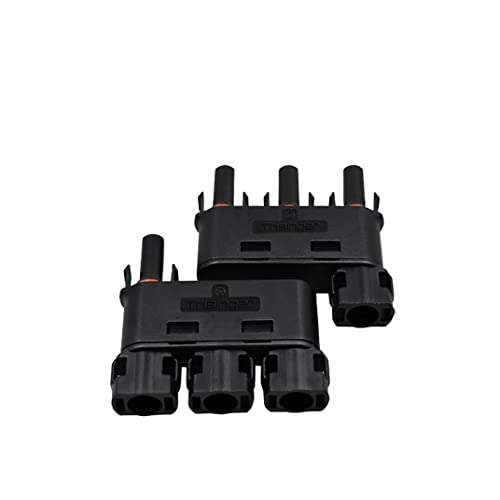

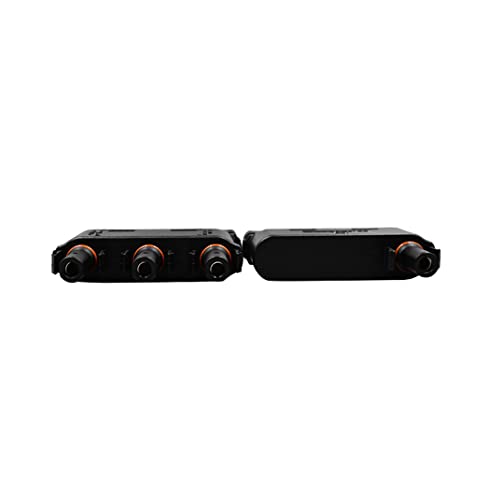

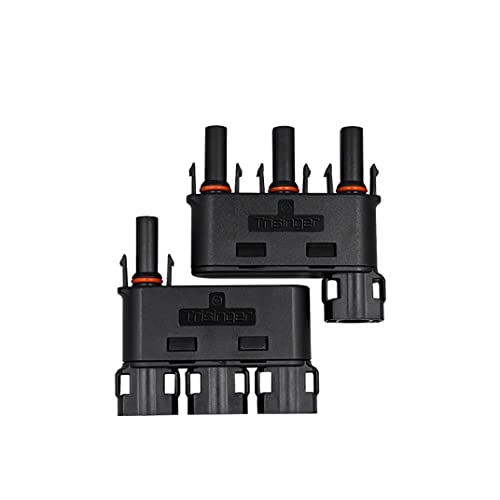

Brand: Trisinger
Features:
- [Material]: PPO as insulation material and tinned copper as conductor ensure a firm connection after crimping the conductor to the cable and presence a perfect operation under heavy load.
- [High Carrying Capacity]: 1500V DC rated voltage, 50A rated current and IP68 water proof level perform well in PV system installation programs.
- [IP68 Waterproof]: The highest water and dust proof standard, can work under the water for 15m for 15 days in Lab.
- [Quality Reliability]: TUV, CE and ISO certificates.
- [Safety Design]: Lock design to avoids connector loosing and provides safety assurance (must be opened with special spanner tool)

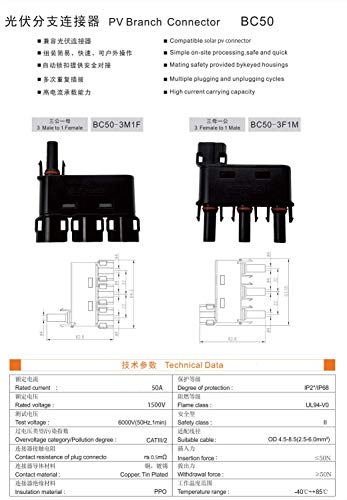

Details: Technical Data of 3 to 1 Branch Connector Insulation Material: PPO/PPE Rated Current: 50Amp Rated Voltage: 1500V Test Voltage: 8kv (50HZ, 1min) Contact Resistance: <0.5mΩ Contact Material: Copper, Tin Plated Degree of Protection: IP68 Safety Class: II Over Voltage Category: CATIII/2 Flame Class: UL94-V0 Insertion Force : Max.50N Withdrawal Force : Min.50N Ambient Temperature Range: -40°C~+85°C (IEC) Suitable Cable Cross Sections : 2.5/4.0/6.0/10.0 mm2 (14/12/10/8 AWG) Why to Choose Trisinger 3 to 1 Branch Connector? ·Compatible for other PV connector. ·Simple on-site processing ensures safety and high efficiency. ·Multiple plugging and unplugging cycles, mating safety provided by keyed housings. ·High current 50Amp carrying capacity. ·Professional R&D and production experience of solar connector series over 10 years. ·SABIC PPE housing: high temperature, abrasion, flame and blotches resistance. ·Solid tinned copper terminal. Integrated inner drum type terminal--self design and patent. ·The highest waterproof level IP68 with abrasion resistance silicone O type ring.
EAN: 0772467228555
Package Dimensions: 3.7 x 3.3 x 0.7 inches
