Brand: A ANNTLENT
Features:
- 【Support Verizon ATT 3G/4G LTE】 The tri-band booster supports GSM, 3G, 4G LTE for Verizon, AT&T, T-mobile and all phones on band 5(850mhz), band 12/17(700mhz att), Band 13 (700mhz verzion).
- 【Better Voice & Data】This signal amplifier boosts Voice and Data Signal for multiple users simultaneously, it will help you avoid dropped calls and get faster uploads and downloads in home.

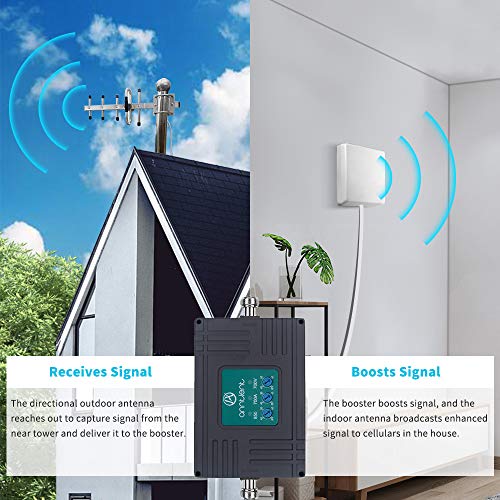

- 【Wide Coverage】The directional panel and yagi antennas with high gain, the booster kit will extend your signal strength up to 32X stronger in a large coverage up to 4,500sq ft. Make sure there is 1-2 bars signal outside.
- 【Advanced Features】The booster has advanced features includes Automatic Gain Control, Self-oscillation Elimination and Inactivity Mode, it means once the booster kit was setup, it will adjust the gain automatically for best performance.

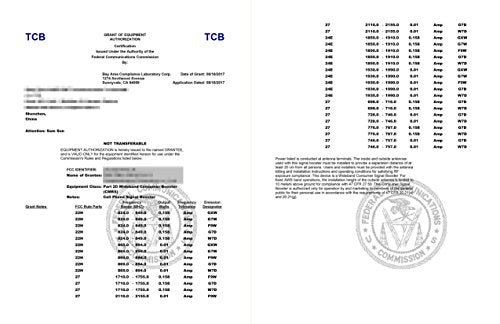

- 【5-Year Warranty】FCC Approved, it enjoys 30-Day Money-back Guarantee, 3-Month Free Replacement, 5-Year Manufacturer Warranty and Professional Technical Support.
Binding: Wireless Phone Accessory
Details:

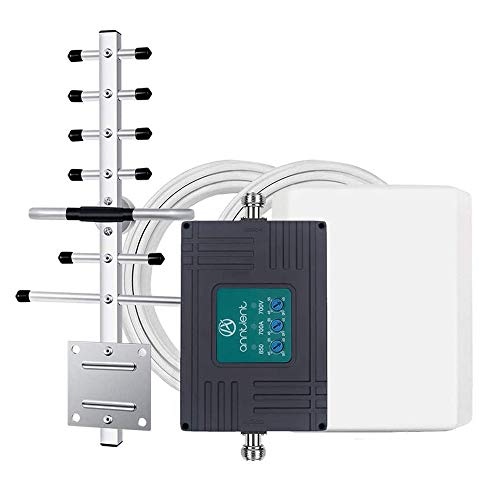

ANNTLENT Cell Phone Signal Booster Repeater Amplifier Kit with Directional Indoor Panel Antenna and Outdoor Yagi Antenna
Function: Boost mobile phone signal for home, office, basement,camper and remote areas with weak signal.
Application: Verizon, AT&T, ATT,T-mobile,Sprint, US Cellular, Straight Talks etc 2g 3g 4g lte
Color: Tri-band 850mhz 700mhz AT&T 700mhz Verizon Booster
Frequency Range:
Verizon LTE 700MHz (Band 13): 776~787MHz, 746~757 MHz.
AT&T LTE 700MHz (Band12/17): 698~716MHz, 728~746MHz
Cellular 850MHz (Band 5): 824~849 MHz, 869~894 MHz

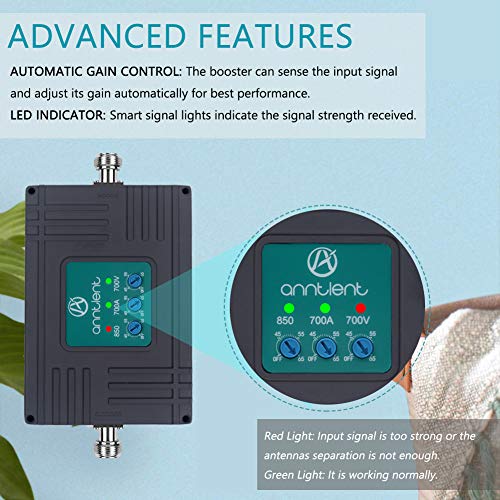

LED Indicator:
Continuous green : normally working;
Flashing green: The input signals is too weak, if it is still working, you can ignore it.
Continuous red: The power supply is shut down when self-oscillation over 5 minutes. First, unplug the power supply; Second, keep outdoor and indoor antennas at least 30ft, then seperate them with a wall; Third, turn down 10dB gain. Final, plug the power supply, the LED light will turn green.

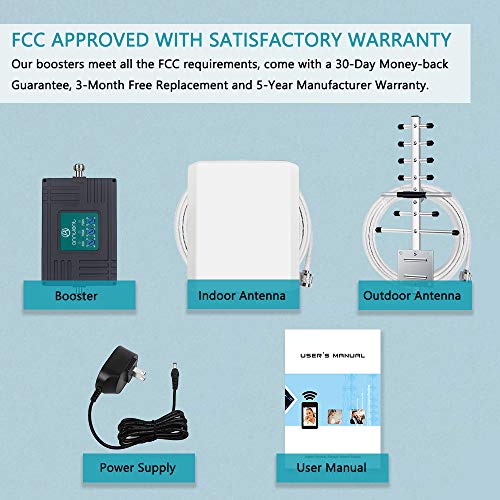

Package:
1 * Tri Band 850/700ATT/700Verizon Booster;
1 * Indoor Panel Antenna with 6M Cable;
1 * Outdoor Yagi Antenna with 15M Cable;
1 * Power Adapter;
1 * Mounting Screw Kit;
1 * English User Manual
Note:
1. Different cell carriers and signal types(3g/4g) has different frequencies, please confirm your cellphone is on Band 5,13 or 12/17 by the methods below:
For Android system, you can download "LTE discovery" to find the band and network frequency.
For Apple IOS system, please dial the NO. *3001#12345#* then click "Serving Cell Info" .
2.There should be at least 1-2 bars signal outside to make it work, as our booster can't create signal.

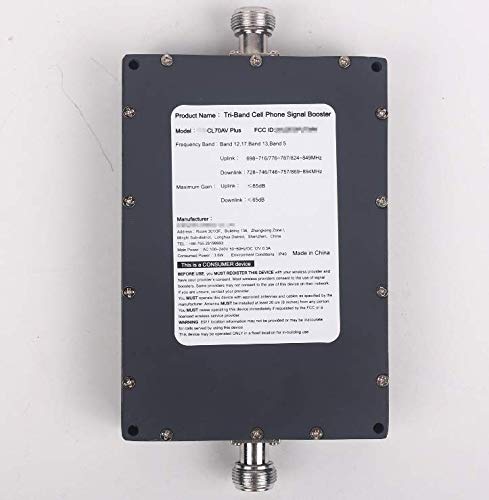

How to register: google your provider and signal booster registration,plug in the address and input the serial number of FCC ID(on the back of booster).
Package Dimensions: 16.3 x 9.0 x 6.7 inches
