Brand: smseace
Color: 1 Pole
Features:

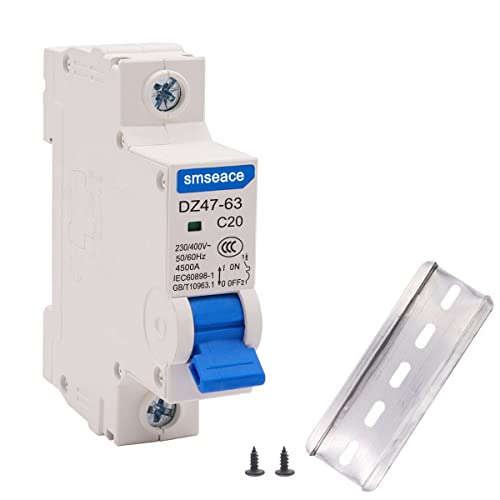

- Product: Miniature circuit breaker
- Model: DZ47-63; Number of stages: single pole; For AC 50 Hz or 60 Hz；rated current: 20A; rated voltage: 230V.

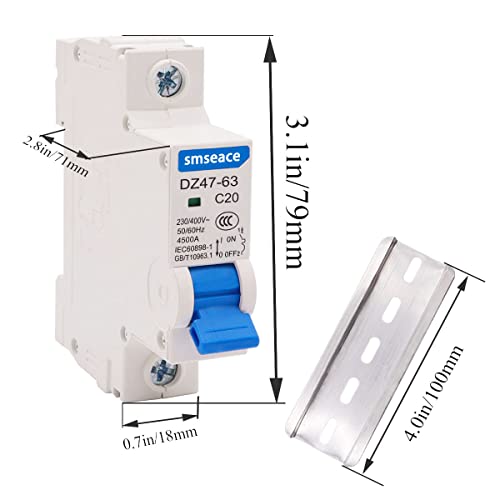

- Size: 3.1"x 0.7"x 2.8"/ 79 x18 x 71mm (L*W*H)
- Material: PC plastic
- Function: used for line overload, short circuit protection and infrequent conversion of lines
Part Number: CADZ47-63-C20-1P

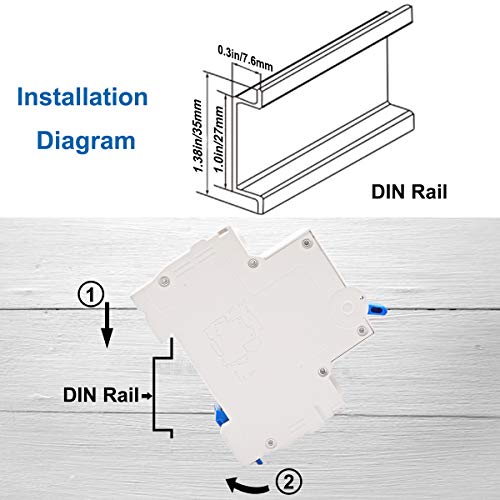

Details: DZ47-63 miniature circuit breaker, used in 220V branch circuit, is used to protect electrical circuit equipment in houses and buildings. Single air switch, single in and single out, only connected to the live wire and not the neutral wire. Beautiful and exquisite appearance, high breaking capacity, quick disconnection, guide rail installation, long service life, high performance and light weight. Usually the circuit breaker is installed vertically, and the inclination of the vertical plane does not exceed ±5°. Packing: 1 x miniature circuit breaker 1 x rail 2 screws
Package Dimensions: 6.0 x 3.9 x 0.7 inches
