Brand: Ruikarhop
Features:

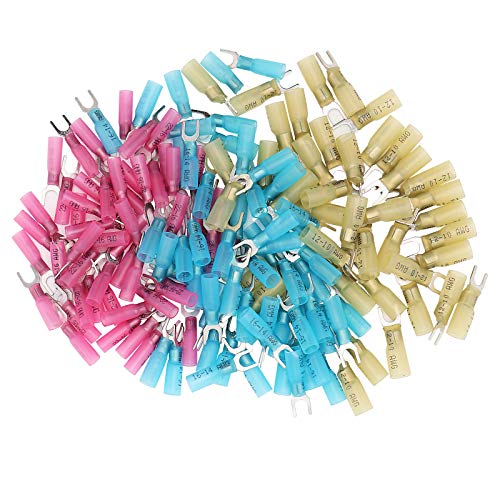

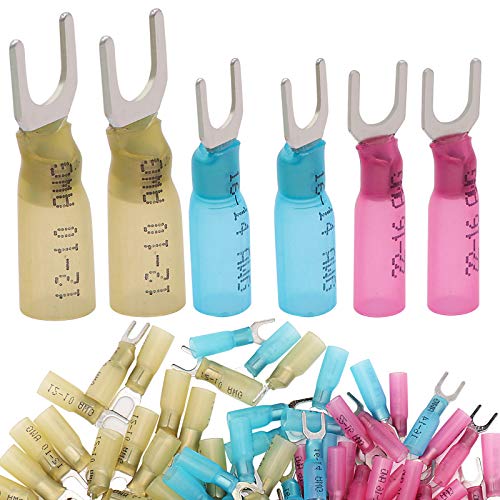

- 【Package】50pcs 16-14 AWG(Blue),50pcs 22-16 AWG(Red),50pcs 12-10 AWG(Yellow)

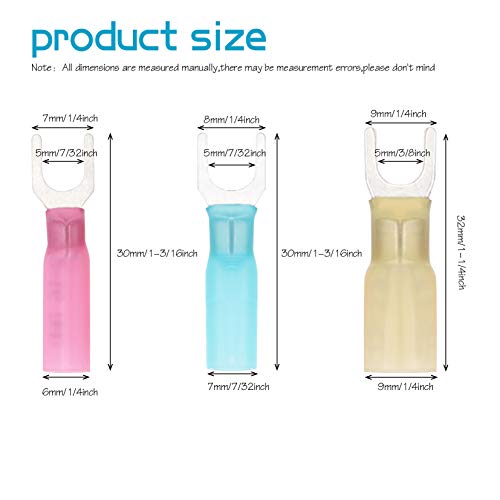

- 【Size】12-10AWG,14-16AWG,18-22AWG. American Stud Size: #10
- 【Easy】Wire gauges and color identifications imprint on wire connectors. You can choose the right size fork terminals according to your needs. Ideal translucent material provides vision for you.

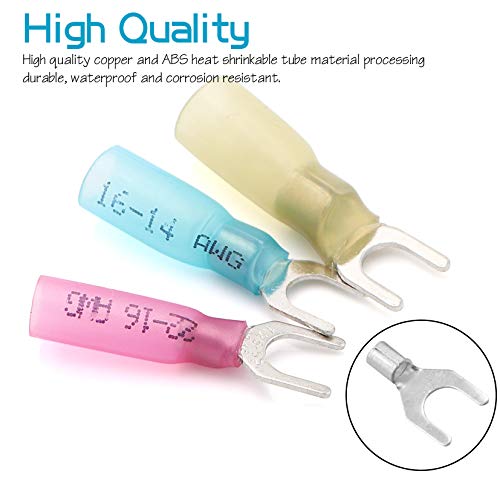

- 【Material】High quality copper and ABS heat shrinkable tube material processing, durable, waterproof and corrosion resistant. With heat shrink technology, shrinks to 1/3 size, heat activated adhesive bonds the connector to the wire.
- 【Application】our heat shrink fork connectors not only can be used in kitchens,motorcycles,cars,washing machines,refrigerators and other household appliances, but also apply for marine/watercraft,automobile/automotive ,electrical and other electronics industries.
Part Number: LL0548

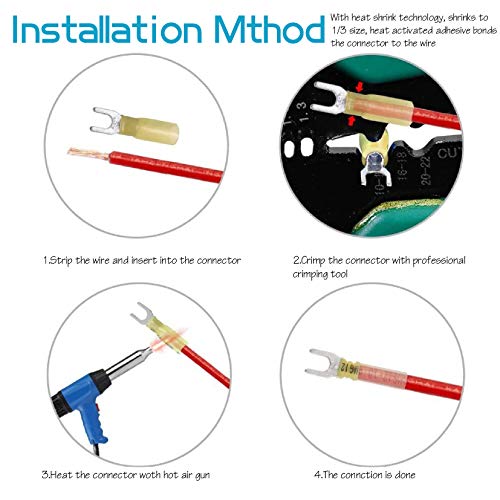

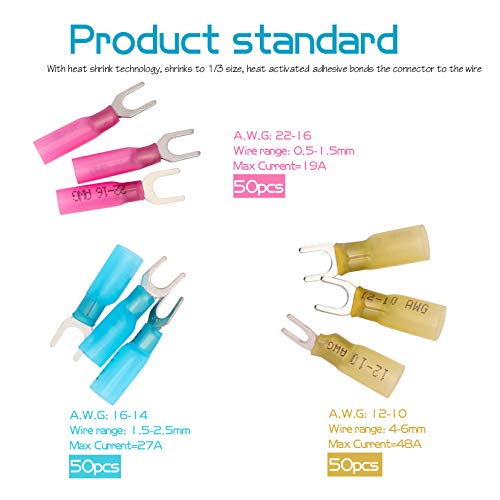

Details: Suitable wire: A.W.G.: 22-16, American Stud Size: #10, Wire range: 0.5-1.5mm², Max current=19A A.W.G.: 16-14, American Stud Size: #10, Wire range: 1.5-2.5mm², Max current=27A A.W.G.: 12-10, American Stud Size: #10, Wire range: 4-6mm², Max current=48A Temperature Rating: Operating temperature: -55 ℃ -125 ℃ Start shrink temperature: 80 ℃ Fully shrink temperature: 400 ℃ Steps for Usage: 1.Strip insulation of the wires to 10mm and insert them into splice barrel. 2.Crimp the metal part of the heat shrink fork connector by pliers. 3.Rotating the wire connector while heating. (Please Note: Please use heat gun or a mini blow torch for best results. 4.Check waterproof quality connection.
EAN: 0699907433365
Package Dimensions: 9.2 x 5.1 x 0.8 inches
