Brand: Retekess
Features:
- Metal housing with backlit function; sturdy and solidly built;lack of glossy key surface with light up numbers; this is very important because in dark locations you cannot read numbers that don't light up
- WG26 with WG34 for input and output; work with wiegand 26 bit tcp ip network access control board panel controller; access control ways; support card; password; card with password; full programming from the keypad; easy to use
- Easy programming; works well in any weather; the circuit board is completely encapsulated in epoxy with super weatherproof ability; so it can be a good choice for outdoor and indoor use
- Tamper alarm function; connection for external release button; access control keypad use RFID transponder technology; active and passive lock signal output; a good choice for outdoor or indoor mounting on a wall or pedestal
- Large memory capacity; access control system support top 8000 user card; it adopts double point relay output signal; stand alone keypad works well; so that you could connect this to a powered device without the use of some computing intermediate
Binding: Electronics

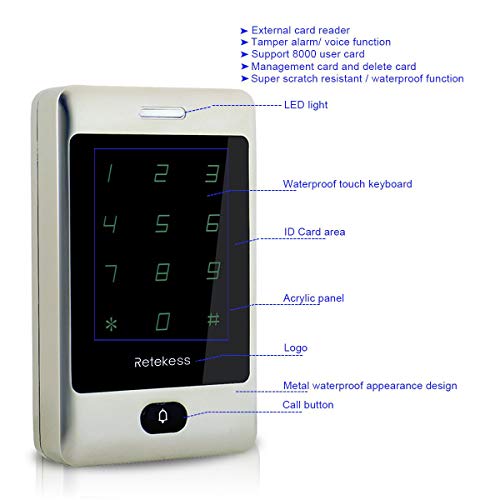

Details: Access control keypad is compact easy to use; metal case; waterproof design; led backlit feature
Easy to install;Plug and Play;easy to install and use Single Door,;Wiegand and reader keypads

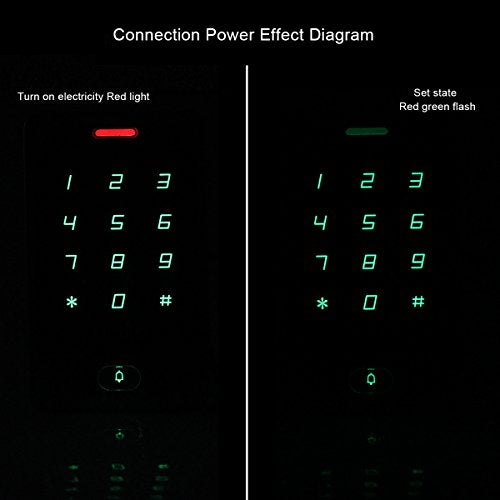

Sturdy and backlit function
Metal case with backlight; So it can long use compared with plastic type; also it is easy to operate in the night
Easy Programming
Full programming from the keypad; So it is convenient to modify the programming code to set up a master card
Door Delay Time Set
The delay time is 0-255 seconds, and the default is 3 second
Access Control Ways
Stand alone keypad support 3 access ways: card, password, card + password
Compact
small size make it easily adaptable for a variety of access control requirements; so it can be well placed in garage or office
Easy to use
The user card can be continuously added, and the trouble of inputting the card number is required for each card when the card is added;The operation is simple, the use is convenient, and the management password can be changed
Access control keypad
Working voltage: DC12V
Unlock relay: 12VDC/2A
Quiescent current:≤50mA
Effective Cards:8000
Ambient humidity: 0%-95%
Card type:125KHz EM or EM compatible card
Read range:1.96-3.93in
Opening time: 0-255 seconds (adjustable)
Electric locking interface: Relay output or input of optional

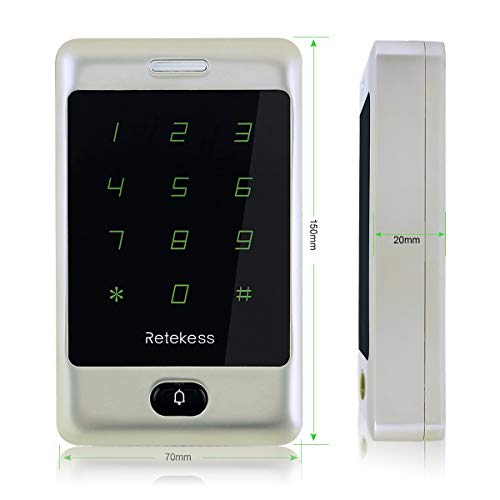

Size:5.9*2.75*0.78in

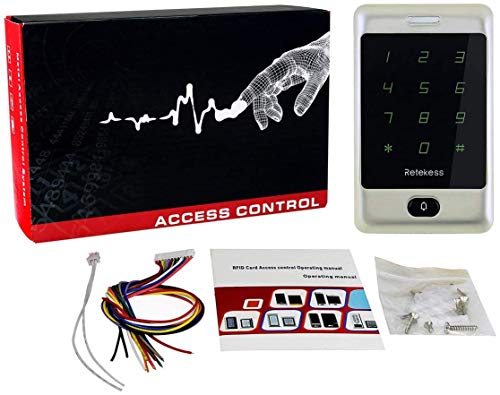

Package Includes
1 x Door access control
1 x Installation Kit
1 x English user manual
Package Dimensions: 8.4 x 5.3 x 2.2 inches
