Brand: Renogy
Color: Cold-Formed Steel
Features:

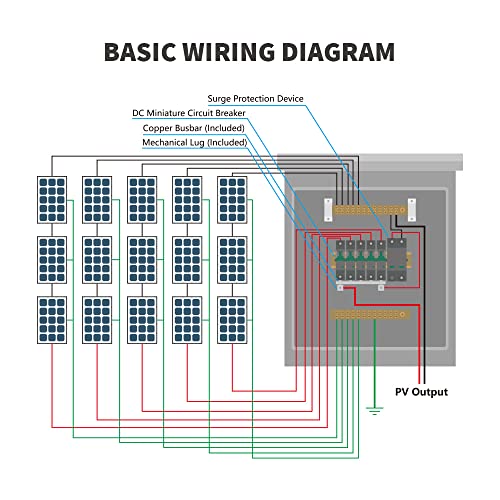

- 【5 TO 1 CONNECTION】Combining up to 5 solar panel inputs into one, and each input can be equipped with a circuit breaker

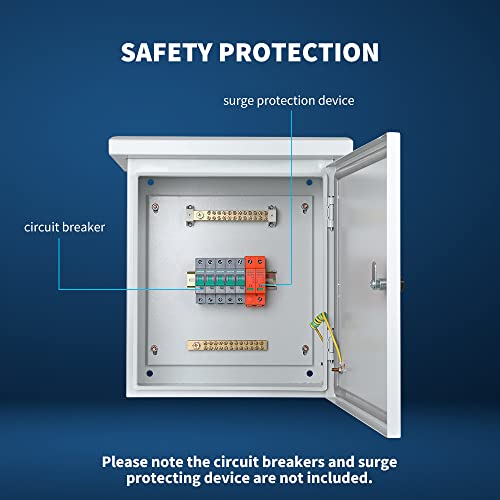

- 【SAFETY PROTECTION】Circuit breaker and surge protection device can be installed to provide overload/short circuit protection and lightning protection
- 【EASY TO INSTALL】Offers built-in standard DIN rail for easy installation.

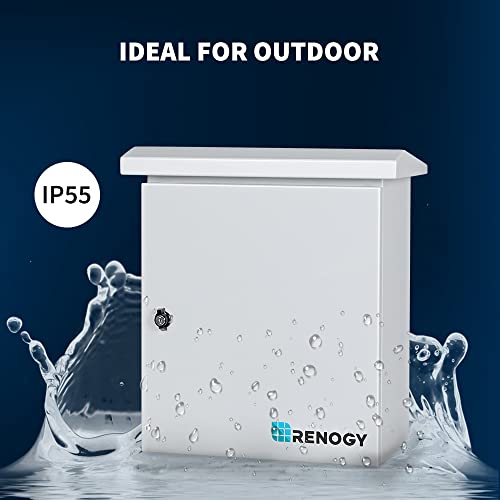

- 【IDEAL FOR OUTDOOR】Protection level at IP55. The double slope top design and rubber seals on door make it more suitable for outdoor environments.
- 【WORRY-FREE USE】Suitable for both On-Grid and Off-Grid Solar Systems. Material and workmanship warranty for 1 year.
Binding: Lawn & Patio
model number: 5 String Solar
Part Number: RPVCOM5SMN7P

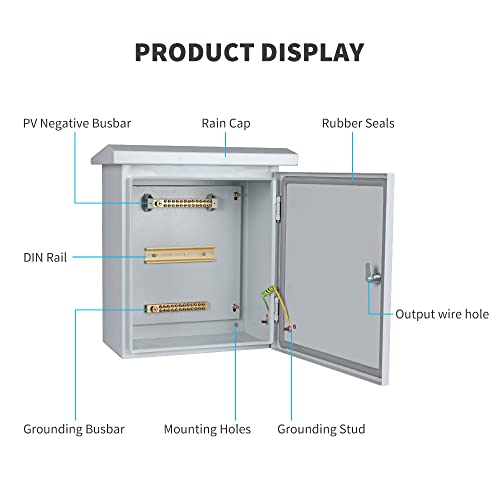

Details: The Renogy 5 Strings Solar Combiner Box is the ideal solution to combine inputs from up to 5 strings of solar panels into a single output. It accepts up to five 1P miniature circuit breaker and one 2P surge protective device for improved safety of the solar system. The built-in standard DIN rail enables easy installation of the protection devices. Equipped with a rain cap and rubber seals, the grey steel enclosure is designed to survive in outdoor environments. The knockouts are reserved for waterproof strain reliefs or conduit.
EAN: 0810009719625

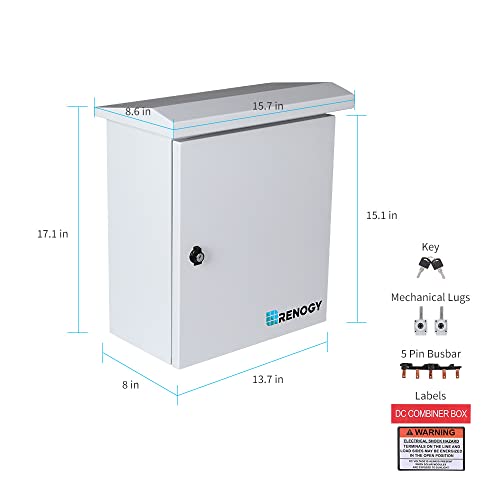

Package Dimensions: 17.8 x 16.3 x 9.3 inches
