Brand: PROZOR
Color: Black
Features:

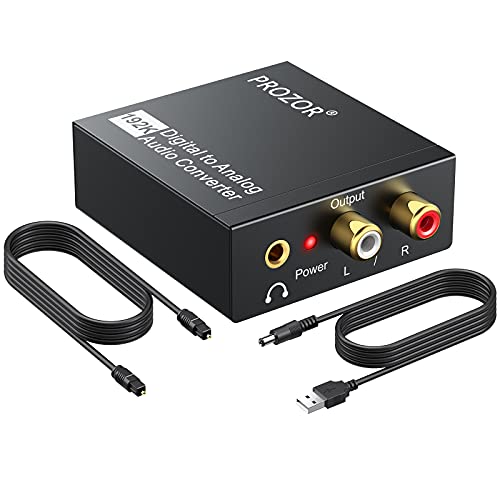

- PROZOR 192KHz Digital to Analog Audio Converter: Converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio simultaneously ( not capable of being reversed)

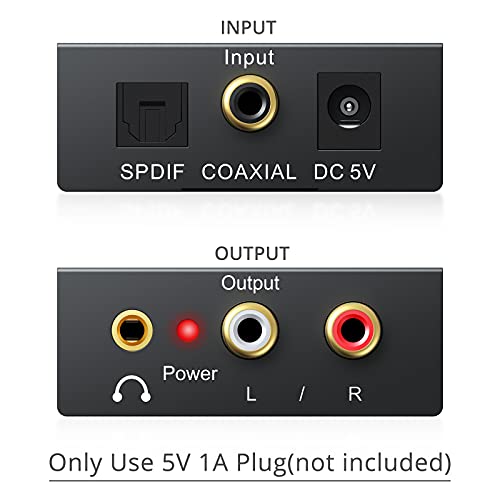

- Input Audio Connector: 1 x Toslink, 1 x RCA (Coaxial); Output Audio Connector: 2 x RCA(R/L), 1 x 3.5mm Jack; Powered by 5.5mm USB Power Cable (Power Adapter is NOT Included); Do Not Use Other Plugs, It Can Only Use 5V 1A Plug

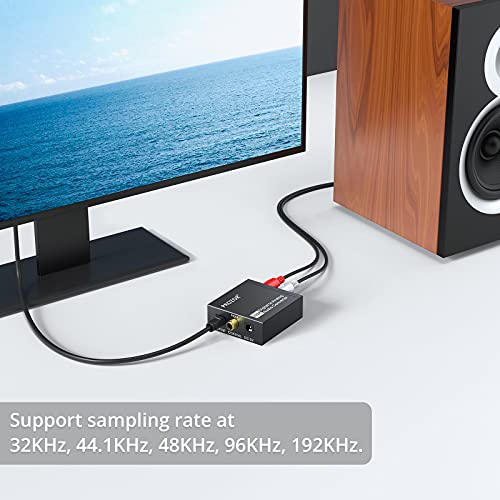

- Up to 192KHz/24bit: Supports Sampling Rate at 32KHz, 44.1KHz, 48KHz, 96KHz, 192KHz; 24bit S/ PDIF Incoming Bit Stream on Left and Right Channels
- Supports Uncompressed 2 channel LPCM or PCM Digital Audio Signal Output; Provides Electromagnetic-noise-free Transmission(5.1 channel is incompatible, please set the audio output to PCM or LPCM）

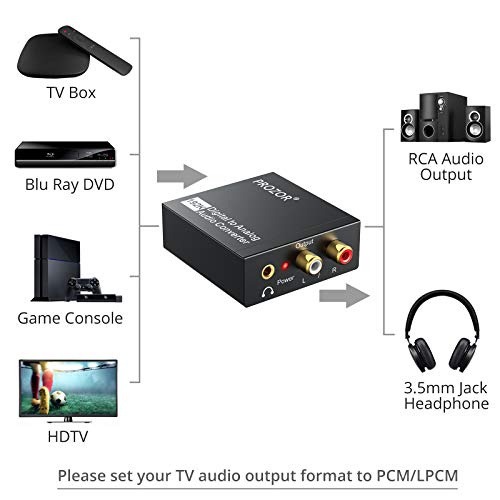

- Easy to Install and Simple to Operate; Can be Used for PS3, PS4, Blu-ray Player, HD DVD, Home Cinema Systems, AV Amps, Etc
Binding: Electronics
Release Date: 31-08-2018
model number: DAC001
Part Number: DAC001
Details: PROZOR Digital to Analog Audio Converter converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio. It also can be used for PS3, XBox, Blue-ray player, HD DVD, etc. which have no RCA(L/R) outputs or 3.5mm Jack output. Features: Converts coaxial or toslink digital PCM audio signals to analog L/R RCA and 3.5mm Jack audio simultaneously ( not capable of being reversed) Available for connection to an external device such as an amplifier via standard RCA jacks or a headphone via 3.5mm jack cable Supports uncompressed 2-channel LPCM digital audio signal output Supports sampling rate at32KHz, 44.1KHz, 48KHz and 96KHz; 24-bitS/ PDIF incoming bit stream on left and right channels Provides electromagnetic-noise-free transmission Easy to install and simple to operate Compact size and easy to carry Certificated by FCC RoHS Specifications: Color: Black Housing: Full Metal Weight: approx 90g Input audio connector: 1 x Toslink, 1 x RCA (Coaxial) Output audio connector: 2 x RCA(R/L), 1 x 3.5mm Jack Powered by 5.5mm USB power cable Consumption: 0.5W (max) Dimension: 73 x 55 x 22 mm Package List: 1* PROZOR digital to analog audio converter 1* Toslink cable (Optical cable) 1* USB power cable 1* User manual Note: Do Not Use Other Plugs, It Can Only Use 5V 1A Plug Please set your TV audio output to PCM / LPCM: Device homepage--system setting--image and sound---voice setting--digital audio output--PCM/LPCM. If Panasonic TV, please set TV audio output to SPDIF output. If Samsung TV, please turn on its external speakers : menu - sound - speaker settings - external speakers - on. This DAC may have some compatibility problem with Youtube or Netflix. Warranty: This PROZOR Digital to Analog Audio Converter Provides 18 Months Warranty.
EAN: 0753807580250
Package Dimensions: 6.3 x 3.9 x 1.1 inches
