Brand: PowMr
Color: Fuse -30A
Features:
- 【Wide DC Aplications Used】: Compatible with PV cable in different insulation diameters and almost all solar pv connectors, multiple plugging and unplugging cycles.

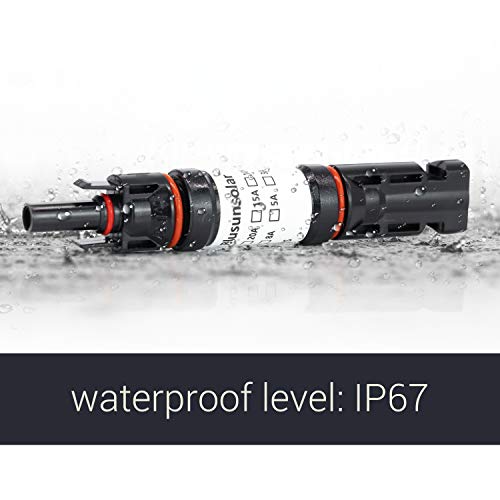

- 【IP67 Waterproof】: the higher water and dust proof standard and not afraid of the rain or drip, can work under the 13m water in laboratory.

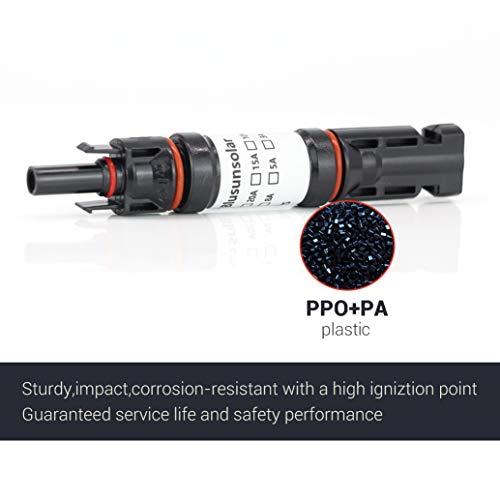

- 【Superior Materials】: PPE/PPO housing and tinned copper terminal, ensure an reliable products lower than 0.5mΩ resistance and UL94-V0 flame resistance. Connector adopts touch and insertion of reed with inner-knob type.
- 【Quality Reliability】: TUV, CE and ISO certificates approve 25 years working time.
Details: Technical Data Insulation Material: PPO Rated Current: 30AMP (depends on the fuse) Rated Voltage: 1000V Test Voltage: 8kv (50HZ, 1min) Contact Resistance: <0.5mΩ Contact Material: Copper, Tin Plated Degree of Protection: IP68 Safety Class: II Over Voltage Category: CATIII/2 Flame Class: UL94-V0 Insertion Force : Max.50N Withdrawal Force : Min.50N Ambient Temperature Range: -40°C~+85°C (IEC) Max 125℃ Connecting System: direct plug Why to Choose Us? ·Easy to plug and compatible with solar pv connector. ·Simple on-site processing ensures safety and high efficiency. ·Replaceable inside fuse, easy to change a new fuse if broken. ·Multiple plugging and unplugging cycles, provides a cycle use. ·High current carrying capacity, depends on the fuse from 1AMP to 30AMP. ·Professional R&D and production experience of solar connector series over 11 years. ·SABIC PPO housing: high temperature, abrasion, flame and blotches resistance. ·Thick tinned copper terminal and unique housing--self design and patent. ·The highest waterproof level IP68 with abrasion resistance silicone O type ring.
EAN: 0655160052446
Package Dimensions: 4.6 x 4.3 x 1.3 inches
