Brand: odlamp
Features:
- Led power supply transformer driver SW Input: AC 110V/220V 50/60Hz, Output: 5V 300w
- Automatic protection for: short circuit / overload / over voltage / high temp
- Certificates: CE/RoHS/FCC Approved
- Warnings: Don't open or modify the led power supply. Please use it under professional electrician's guides. Any abuse or improper use will void warranty
- widely used in LED lighting, Home Appliance, Instrumentation, Office Automation, Telecom, Process and Engineering Industries etc

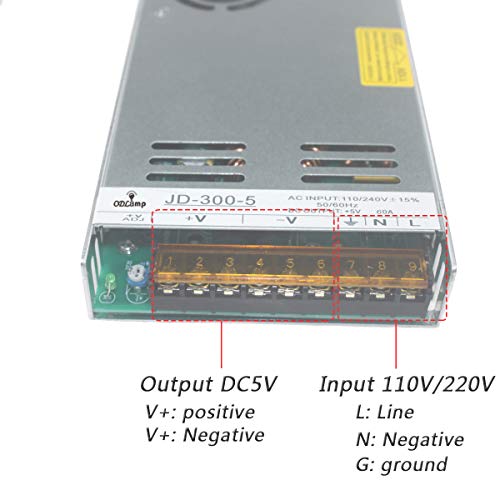

Details: Input : 110V /220V AC 50/60Hz Output Voltage: Dc 5V Rated Current: Current Range:0- 60A Rated Power: 300W Material:Metal Certificates: CE/RoHS/FCC Approved NO Waterproof Ripple&Noise(Max):200Mv Working condition:0~45℃ 20%-90%RH Storage condition:-20℃ ~80℃ 10%~95%RH Automatic protection for: short circuit / overload / over voltage / high temp Power Factor(Typ):PF>0.8 Efficiency(Typ):85% Working Temp:-30~ +60¡æ(Refer to output load derating curve) Working Humidity:20~90%RH no-condensing (Waterproof) Warnings: Don't open or modify the led power supply. Please use it under professional electrician's guides. Any abuse or improper use will void warranty. L, N: AC power input : GND -V: DC power output "-" +V: DC power output "+" +V ADJ : Adjust the output voltage (15%) Notice : This power supply does not come with installation instruction, wiring cable, ON/OFF switch or screws; Professional Installation of qualified electrician is highly recommended Please do not let the product work long hours over rate current Please make sure the power is lower than or equal to the rated power supply Package include: 1* 300W Power Supply DC 5V
EAN: 0793869671626
Package Dimensions: 8.8 x 4.8 x 1.5 inches
