Brand: MPD DIGITAL KEEPING YOU CONNECTED QUALITY US MADE CABLE ASSEMBLY
Color: Black
Features:
- CABLE TYPE: LMR-400 Coaxial Cable. Direct Drop-In Replacement for RG-8/9913 and other UF designated Cables of this size variant.

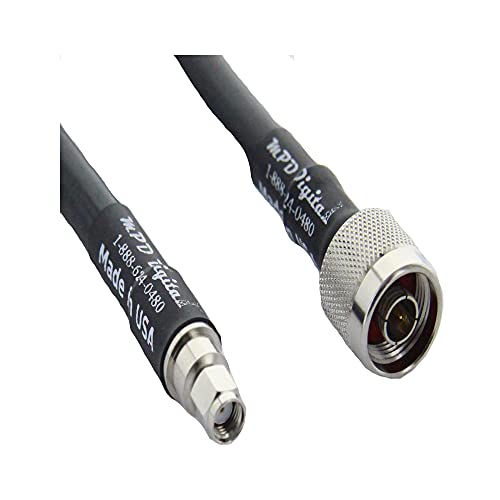

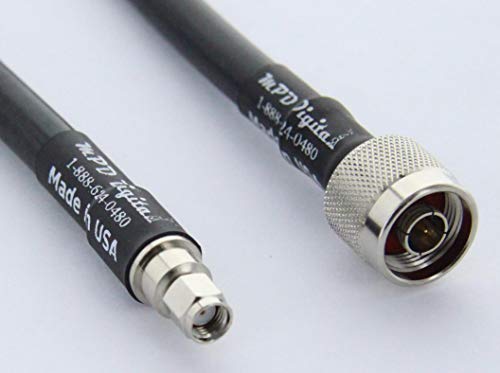

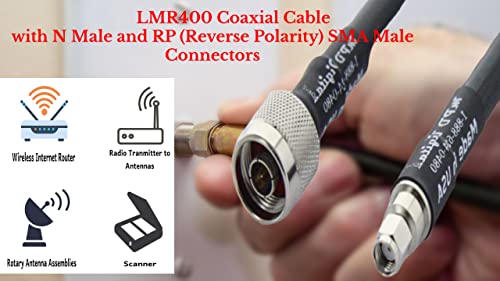

- CONNECTOR TYPE: N Type (male) to RP-SMA (male) coax connectors. UHF/VHF WIFI up to 6 GHz. Connects access points, GPS systems, rotary antenna assemblies, WiFi hotspots, receivers, scanners, meters, wireless internet routers and radio transmitters to antennas.
- PEOPLES NETWORK: Compatible with Helium and IOT hotspot antennas and devices designed for low power wide area networks (LPWANs or LoRaWAN ) from 868-869 MHz and 902-930 MHz (also known as EU868 Frequency Plan and US915 Frequency Plan). Cable assemblies used for mining cryptocurrency such as HNT, Litecoin, Bitcoin, etc.
- ULTRA LOW LOSS: This low loss coaxial transmission Line can be used in almost any application where good handling characteristics, improved shielding, and low loss is required.
- FLEXIBLE JACKET: flexible UV proof PVC jacket, outer diameter .405 Inches (10.3mm) nom., SRL, per MIL-C-18. Designed for 20 year outdoor or indoor applications and the outer jacket resists ultraviolet light and oxidation. Bends and handles significantly better than air-dielectric / corrugated PE hardline cables.
model number: Nm-RPSMAm-LMR400-20ft
Part Number: Nm-RPSMAm-LMR400-20ft
Details: The First and still the Best! LMR-400 Coax is the same size as RG-8U or RG-213 cable, .405 inches in diameter. A larger cable means a MUCH larger center conductor and supports better signal retention for HF/VHF/UHF and higher frequency use. Like all LMR cables the PE Jacket and Dual Shield eliminates the need for conduit and avoiding electrical sources. LMR-400 is an excellent cable for runs up to 50-70 feet in WiFi and Cellular use, and provides superior performance for HF/UHF/VHF installation up to 250 feet. The PE jacket used on LMR-400 makes it much tougher and able to stand abrasion and take a beating. It also makes it a bit less flexible than similar sized RG Type coax.
EAN: 0608766034453
Package Dimensions: 10.5 x 10.2 x 2.1 inches
