Brand: S NMT
Color: 1 Remote + 4 Controller
Features:
- Complete Kit including 4 x RGBW/RGBWW controllers and 1 x RF Remote, you can control all four controllers with only one remote. *Compatible with Wi-Fi hub bridge (not include) to control your lights with smart phone, iPad and Android tablets.
- Supports grouping control, you can add as many controllers as you like and group them as one zone, one remote support up to 4 zones. （It need link the zone to control the 4 zones, at first unlink then link to new zone if you want to change the zone.)
- 100% - 1% smooth dimming capability, 16 million mixing colors and various pre-programmed changing effects for home, commercial decorative and accent lighting.
- Work with both DC 12 and DC 24V circuit, screw terminals and DC female connector for your option, RGB 4 channels output, 6A/channel.❥If the controller connect with RGB strip light, you can get a white color that mixed by RGB. If the default color is White after link success,the strip can not bright.Please touch the colors ring of the remote.
- ❥❥Please pay attention: If the link/unlink operating time over 5 seconds(link/unlink failed) please do power off the lamp,then power on to try it again .
Binding: Tools & Home Improvement
model number: SNMTFUT038
Part Number: FUT038
Details:

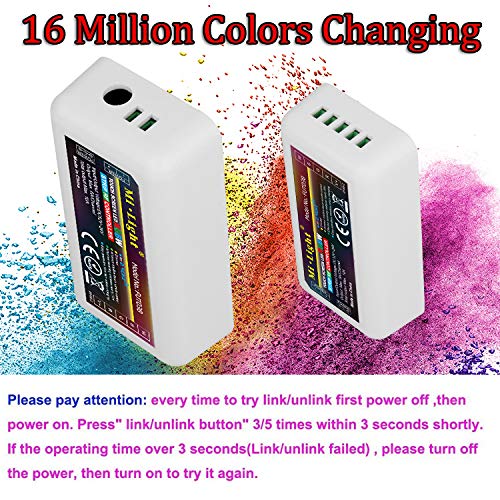

❥Please pay attention: every time to try link/unlink first power off ,then power on. To link/unlink it in 5 seconds(Press link/unlink button 3 -5 times shortly). If the operating time over 5 seconds(link/unlink failed) please power off ,then power on to try it again .❤ Please contact seller(S NMT) about any use issue of these porduct.
Feature:

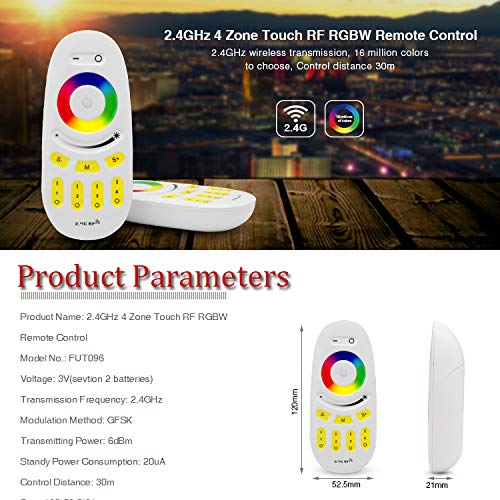

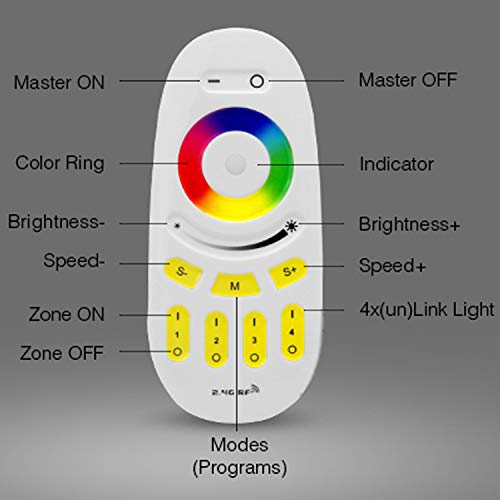

RF Touch remote control :
Size: 120*52*20mm
Power: 2 pcs AAA battery (not included)
Material: ABS
Fabrication processing: multicolor printing & UV varnish

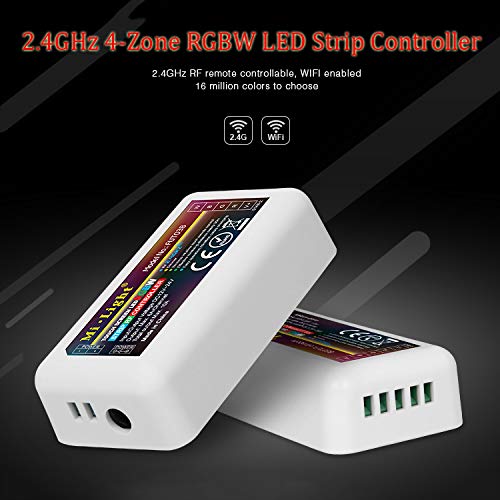

RGBW LED Controller:
Size: 85 x 45 x 23 mm

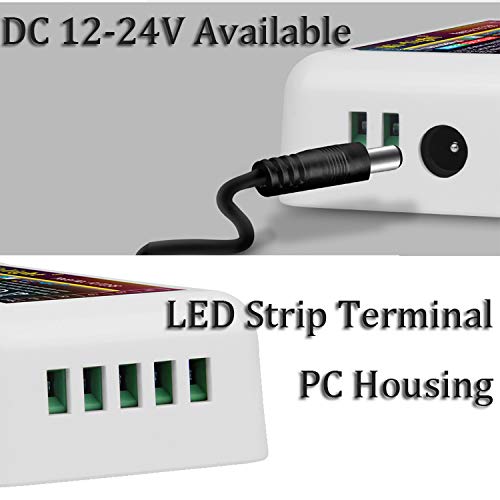

Working voltage: DC 12V ~ 24V
Max load per channel: 6A
Total Output Current: 24A
Output connection: Common Anode(+)
Control distance: 30 m/ 98ft
Programs: 9kinds
Link / Unlink:
1. Link: First power off, then power on, within 3 seconds touch any of the Zone-ON button 3 times shortly, the link is done when you see the light blinks 3 times with green color, otherwise try again later.
2. Unlink: First power off, then power on, within 3 seconds touch the linked Zone-ON button or the Master-ON button 5 times shortly, the unlink is done when you see the light blinks 10 times with red color, otherwise try again later.

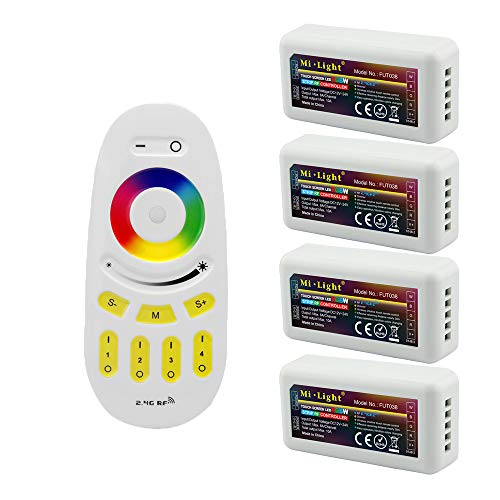

Package Includes:
1pc RGB+W remote
4pcs RGB+W controller
Question:
Does this controller mix white with the RGB?
Answer:
This controller can control either RGB or RGBW strip light. If you connect it with RGB strip light, you can get a white color that mixed by RGB. If you connect it with a RGBW strip light, you can get a pure white color.
Tips:The wifi box 's function includes the remote of function. The wifi box can control your strip lights or bulbs when you outdoor by your phone.
EAN: 0612957953010
Package Dimensions: 5.8 x 5.8 x 2.3 inches
