Brand: KABLE KONTROL
Color: Gray
Features:

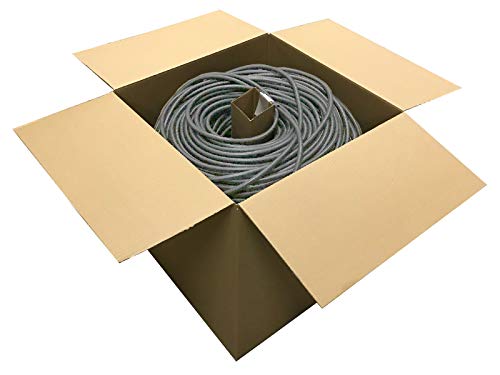

- DIMENSIONS – Diameter – 1/2” Inch (13 mm) | Length – 1,100' Feet | Wall Thickness – 0.005” Inch (0.12 mm) | Color – Gray | Material – Flame Retardant Polyethylene Tubing | Material Certifications – Underwriters Laboratory: Rated UL-94 VS2 @ 1.5mm | FMVSS 302: Max. burn rate of 101.2mm /min. (1.0mm thick).
- MATERIAL – This split wire loom is made from flame retardant polyethylene with an operating temperature range of -40°F to +200°F (-40°C to +93°C). This wire conduit is REACH and RoHS compliant. The split tubing is highly flexible making it long-lasting; no twisting, tangling or slit separation. It is also resistant to auto fluids, chemicals, abrasion, and self-extinguishing which allows you to secure wires, cables, and small hoses effectively and with confidence.
- MULTIPURPOSE – This flame retardant split corrugated tubing is ideal for any application that requires tubing that meets flammability, and outgassing requirements. These looms will keep your electronic equipment in order and will fully guard your important cables from intense heat, equipment failures, and fire hazards. This loom tubing is suitable for use in industries such as automotive, computer, agricultural, marine, telecommunications, construction, and specialty markets.

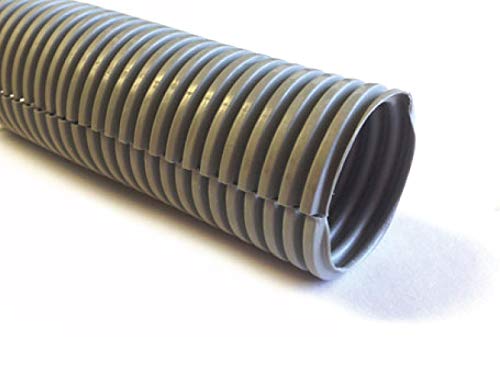

- DESIGN – The flame retardant polyethylene split wire looms come with a slit down the middle which allows for effortless installation. Just open the tubing along the slit and insert the wires – no disconnection of wires required. Serving as a heat stabilizer, the wire looms are a low-cost alternative that protect your wires against damage, eliminates tripping hazards, and can be cut to any desired length without sacrificing quality.
- TECHNICAL SPECIFICATION – Specific Gravity/Density: ASTM D792 (1.005) | Elongation @ Break: ASTM D638 (945%) @ Yield: ASTM D638 (167%) | Tensile Strength @ 25C: ASTM D638 (14.99619 MPa) | Flexural Modulus: ASTM D790 (240 MPa) | Melting Point: ASTM D3418 (239°F/115°C) | Notched Izod Impact Test: ASTM D256 (10ft lb/in) | Heat Deflection Temperature @66psi: ASTM D648 (122°F/50°C) @264psi: ASTM D648 (104°F/40°C).
Binding: Electronics
Details: Our Gray Polyethylene Flame Retardant Split Wire Loom fully guards your important cables and wires against intense heat, abrasion, chemicals, impact, and crushing all while retaining the same flexibility your cables had before. Being made of flame retardant polyethylene, the wire loom is heat resistant and has an operating temperature of -40°F to +200°F (-40°C to +93°C) and rated as V2 according to UL-94. These split wire looms are an affordable cable management system ready to protect your wires against damage, eliminate tripping hazards and suit both your personal and professional needs.
EAN: 0618559193038
