- Input voltage: 4.8-6.0V. Working current: 100mA.
- LED wire length: 30cm. Suitable for 1/10 RC cars.
- Improved design of circuit board, HOSI power saving.
- Headlight white, blue taillight, brake light red, turn light yellow.

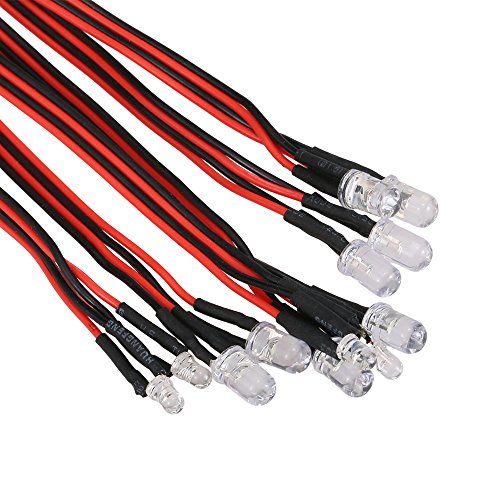

- 12 LED Multi-color RC Car Flashing LED Light Lamp. Easy to install and operate.
Part Number: ROF1368785238881DC
Details: This 12 LED Lighting System Kit is suitable for 1/10 RC cars. It have four colors lights, include white headlights, blue taillights, red brake lights and yellow turn lights. With improved circuit board, it can support High-V receiver and normal receiver. And one set of lights can be controlled by the transmitter. Specifications: Name: 12 LED Lighting System Kit LED bulb quantity: 12 Working Current: 100mA Input voltage: 4.8V - 6.0V Lights color: White, red, yellow, blue Connection method: CH1 - Servo, CH2 - Speed controller, CH3 - Receiver Suitable for: 1/10 RC cars LED cable length: about 300mm Circuit board size: 53 * 33 * 15mm Weight: 57.2g Lights Description: Headlights: 4 white LED lights Connect the lighting system to the CH3 on receiver: the transmitter can independently control a group of lights, another group of lights are on when the car speed up; Not connect to the CH3 on receiver: one group of lights are always on, another group of lights are on when the car speed up. Turn lights: 4 yellow LED lights With the remote control change the direction, the lights will synchronous flashing. Taillights: 2 blue LED lights, 2 red LED lights The blue lights are always on. When the car speed up or brake, blue lights will go out. Only when brake, the red lights on. Installation Method: CH2 Transmitter: Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1 and CH2 to receiver. CH3 Transmitter: Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1, CH2 and CH3 to receiver. Package Information: Package size: 6.3 * 2.8 * 1.6in Package weight: 2.1oz Package List: 1 * 12 LED Lighting System Kit
Package Dimensions: 6.3 x 6.3 x 1.5 inches
