Brand: Glutoad
Features:
- 【Safe and Reliable】Glutoad lever wire connectors Selected flame retardant insulating material modified nylon PA66, which has a long life, no corrosion, anti-aging and pressure 4KV and against electrical shock. Used flame-retardant materials, internal shrapnel copper material, better conductive properties, can work continuously at 221 degrees Fahrenheit.
- 【Space Saving】These Glutoad lever wire connectors adopt special and scientific design, which will save space effectively. And when you combine the wires, you don't need to worry about a twist between the wires.

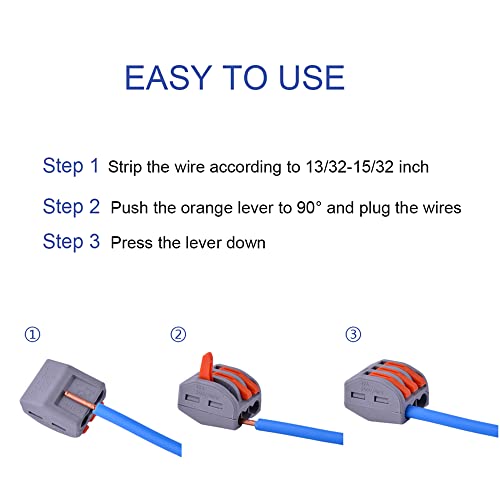

- 【Easy to Use】First strip the wire according to 13/32-15/32 inch, then push the orange lever up to 90° and pushin the wires, last push the lever down. When the wire is inserted into the Glutoad lever electrical connector and locked, the wire will not loosen. The Glutoad wire terminal block connector has strong pull resistance.

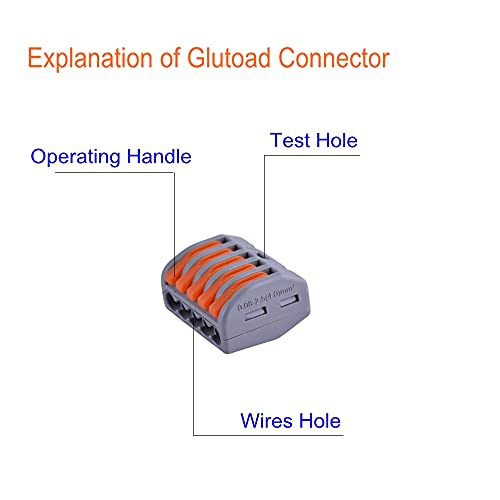

- 【Time and Effort Saving】These Glutoad lever wire connectors can quickly connect and remove wires. If you need to replace wires, simply pull up the orange levers, pull out the unneeded wires and replace them. There are test holes in every Glutoad lever connector surface, it can be used to check whether the wires have electricity or not.

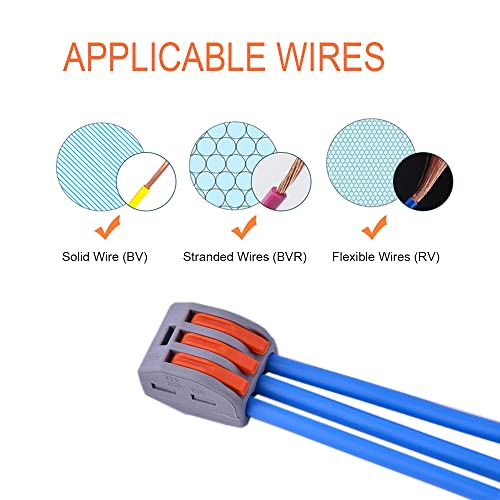

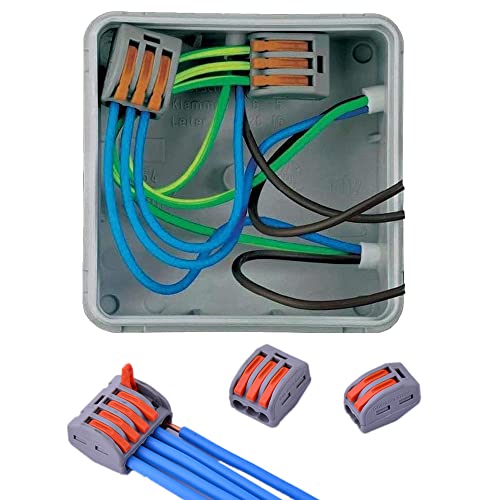

- 【Widely Used】Glutoad lever wire connectors assortment kit can meet your different wiring demand because they have 3 different conductors (2 3 5 Port). They can connect any combination of solid, stranded, and flexible copper wires 28-12 AWG. They are widely used in sockets, switches, lamps, electrical boxes, chandeliers, loudspeakers, fan controls, and much more.

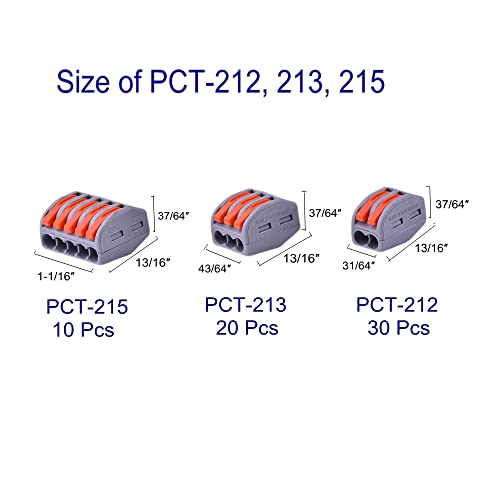

Part Number: PCT-212, 213, 215

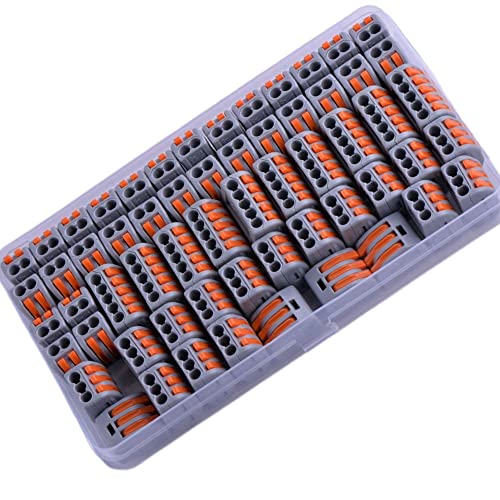

Details: PACKAGE LIST: ¡ñPCT-212, 2 port (30pcs) ¡ñPCT-213, 3 port (20pcs) ¡ñPCT-215, 5 port (10pcs) PRODUCT PARAMETER ¡ñRated voltage: 250V/4KV ¡ñRated current: 32A ¡ñRated power: 7KW ¡ñThe material of conductive part: electrolytic copper-tin plating ¡ñApplicable wire: Solid wire (BV): 0.08-4mm? Stranded and flexible wire: 0.08-2.5mm? WIRING OPERATION STEPS ¡ñStrip the wire according to the specified length(13/32-15/32 inch). ¡ñDismantle the orange operation handle straight and plug the wire into the hole. ¡ñLower the handle. ¡ñGlutoad lever wire connectors assortment pack can meet your different demand because it has 3 different models (2, 3, 5 port). It can connect any combination of solid, stranded, and flexible copper wires. ¡ñWires will not come loose when plug the wire in the connector. lever wire connector has a strong pulling force. ¡ñMade of the best high quality insulating material, lever wire connectors housing has some advantages of corrosion resistance, high-temperature resistance and aging resistance. These lever wire connectors are safe. ¡ñThe lever wire connector is a reusable and innovative connector. If you need to replace damaged wires, simply pull up the orange levers, pull out the damaged wires and replace them.
Package Dimensions: 6.9 x 4.0 x 1.1 inches
