Brand: GKEEMARS
Color: 3 conductor
Features:
- Great quality: The transparent cover is made of PC insulating material, with the advantage of corrosion resistance, aging resistance, pressure resistance, can effectively prevent electrical leakage, safe and reliable.

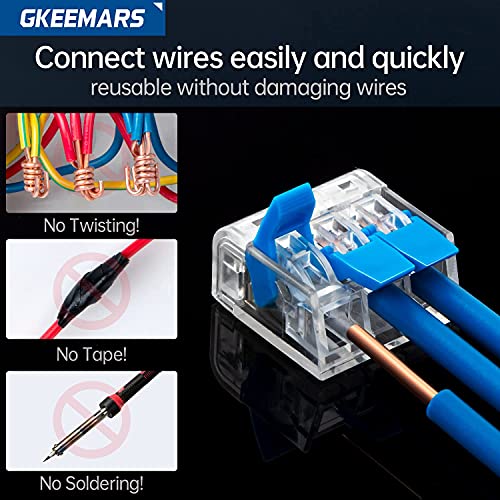

- High efficiency: No twisting, taping or crimping required, simply strip wire and plug-in. Connect copper wires faster and more simply, also more convenient for replacement and maintenance.
- Universal Compatibility: GKEEMARS wire connectors accommodate flexible wires from 0.14 to 4 mm² (24-12 AWG), as well as solid and stranded wires from 0.2 to 4 mm² (24-12 AWG).

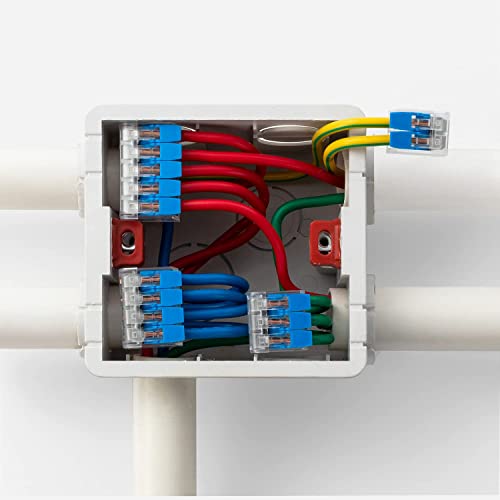

- Application: GKEEMARS electrical connectors kit is widely used in lighting fixtures, parasol curtains, awnings, doors and gate controls, inter phones, pumps.
- Package content: 50 X 3 port electrical lever wire connectors. Various wire conductors meet your different needs.
model number: KV221-413
Part Number: KV221-413

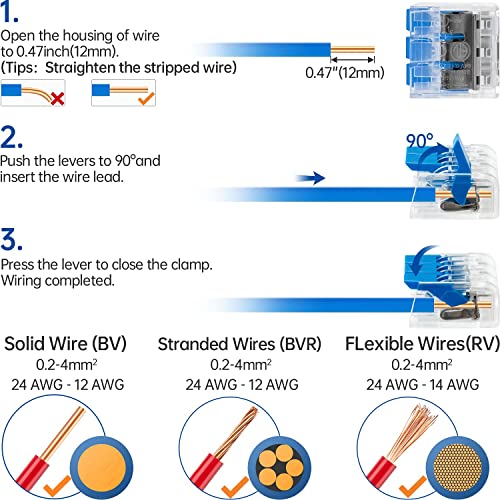

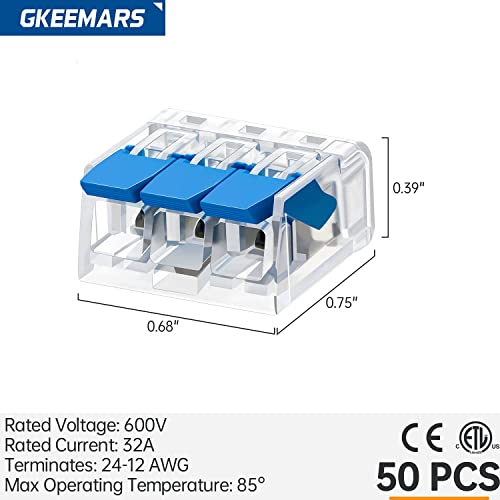

Details: Product Features: No need for tools. Plug and play quick connecting. Low installed cost and safe operation. Reusable conductor compact wire connector. Different wire sizes and types can be combined in one connector. Corrosion resistance, high-temperature resistance and aging resistance. Visually inspect for proper strip length and complete wire insertion through its transparent housing. Product Specification: Model: KV221-413 Terminates: 24-12 AWG Rated Voltage: 450V Rated Current: 32A Rated Impulse Voltage: 4KVMax Operating Temperature: 85℃ Actuation Type: Operating Leve Size: 0.68” X 0.78” X 0.39” Net Weight: 2.5g How to Use? Open the housing of wire to 0.35-0.47 inches. (Make sure enough length that wires are plugged into the end). Push the blue lever to 90° and insert the wire lead. Press the lever to close the clamp. Check the test hole whether it is connected correctly. Package Included 50pcs x 3 Conductor (221-413)
EAN: 0735279549959
Package Dimensions: 4.6 x 3.4 x 2.5 inches
