Brand: Flipsky
Features:
- 【Open Source Project 】Based upon the ESC Open Source Project and compatible with VESC Software , come with regenerative braking capabilities .
- 【Easy wire management 】highly modifiable electronic speed controller designed for DIY Electric Skateboards , Custom design but easy wire management
- 【Reliable and progressive electric braking 】allows you to use sensorless motors to achieve smooth start-up from a stop , It also provides strong reliable and progressive electric braking
- 【High-end quality capacitors 】 3pcs 68Ouf 63V capacitors to keep ESC perform the sensor cable stable when it speeds up or slows down
- 【4-layer PCB Board 】The PCB adopts is gold-thickening process with a 4-layer . The thickness of each layer of copper foil is 3OZ, and the total copper foil thickness is 3OZ*4=12OZ

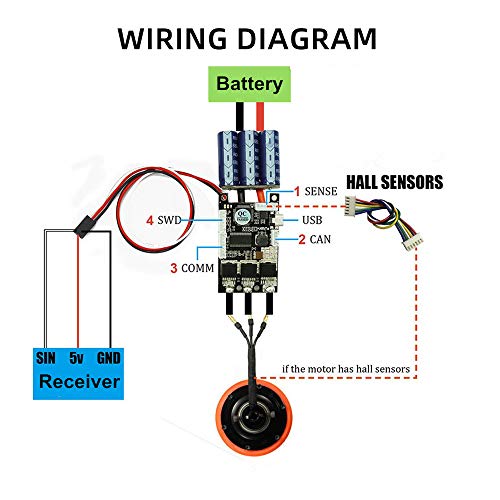

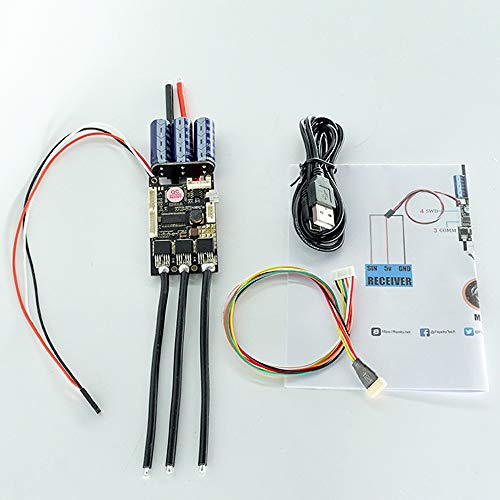

Details: ◆ Hardware:V4.12 ◆EPRM:60000 ◆ Firmware: V3.40(Keep upgrated with the latest firmware version) ◆ PCB:4 layers, size: 40*60mm ◆ Current: 50A continuous / 240A peak ◆ Voltage: 8V-60V (Cells: 3-13S LiPo) ◆ Recommended 10S battery ◆ BEC: 5V@1.5A ◆ BEC type: Internal driver support ◆ Timing: Software calibration ◆ Motor control interface: PPM signal (RC servo), analog, UART, I2C, USB or CAN‐bus. ◆ Cutoff Voltage: Programmable ◆ Frequency: PWM input ◆ Governor: No ◆ Weight: 80g ◆ FSESC4.12 Size: 110x40x20mm ◆ Programming card: No ◆ Reverse: Yes The shipping package contains: 1*FSECS4.12 1*Mini USB 1*ESC Sensor Wire 1*Manual
Package Dimensions: 7.5 x 5.0 x 1.0 inches
