Brand: Etekcity
Color: Red，MSR-R500
Features:

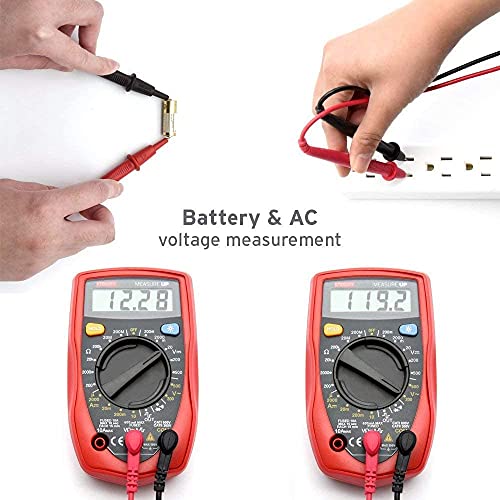

- ACCURATELY MEASURES: This multimeter can test AC/DC Voltage, DC current (Not for AC current), Resistance, Diode, Continuity and More. Sampling Speed: 3 times per second

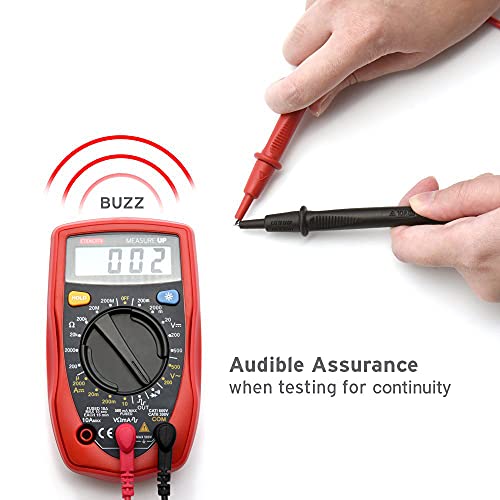

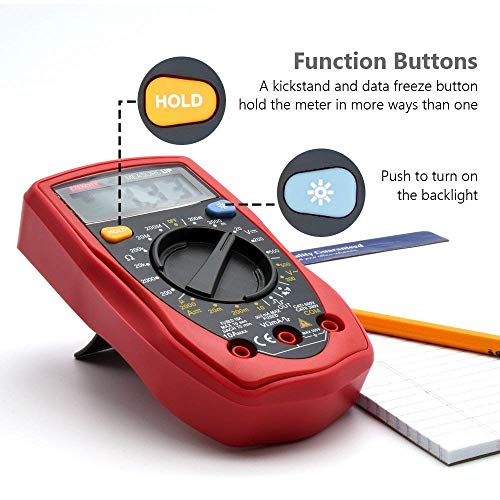

- HANDY TROUBLESHOOTER: Data Hold button holds a reading; large backlit LCD with large digits is easily visible in dimly lit areas; Built-in support stand allows for hand free use; Low battery indication and Continuity buzzer

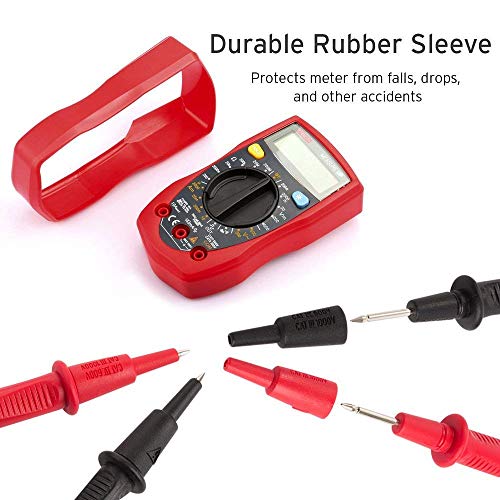

- SAFETY PROTECTION: The multimeter has overload protection on all ranges and anti-burn with double fuses. Protective rubber sleeve around the multimeter adds extra drop protection
- NOTE: This multimeter cannot be used to test AC current. Please make sure the rotary switch is located at the right range during use
model number: Digital Multimeter
Part Number: MSR-R500

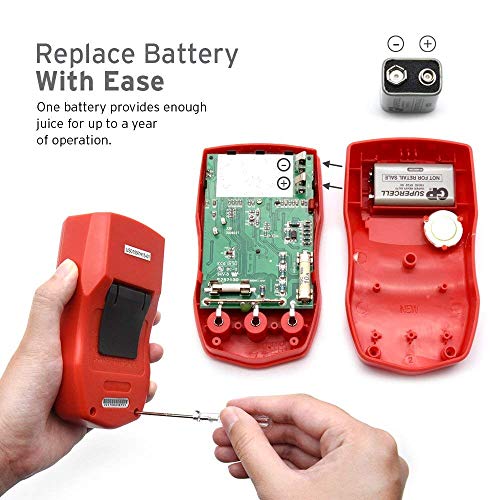

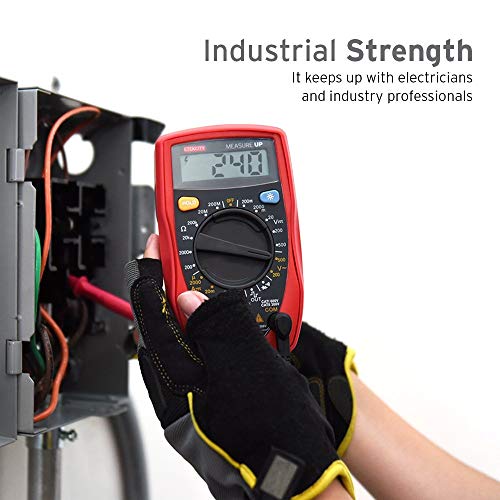

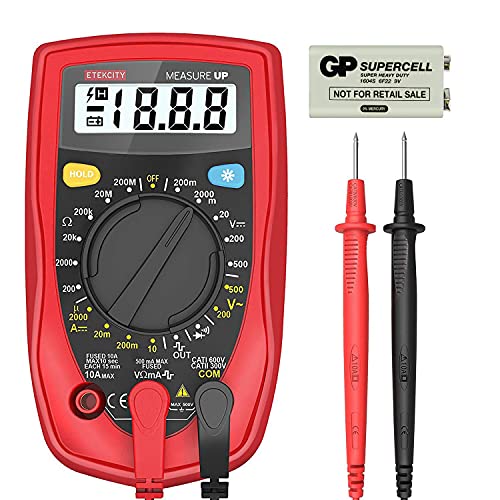

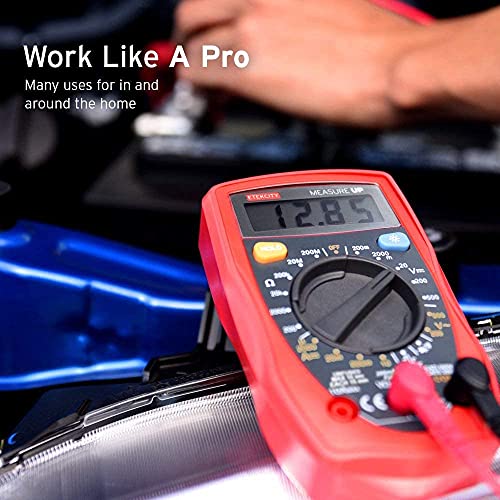

Details: Do It All, and Then Some! The Etekcity MSR-R500 Digital Multimeter is a practical tool for electricians, hobbyists, and general household use. It is easy to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing. Specifications ★Display: 1999, 3 1/2 digits ★Range selection: Manual ranging ★Overload display: Display OL ★ Sampling Speed: 3 times per second ★Diode Test: Yes ★Continuity Test: Yes ★Square Wave Output: Yes ★DC Voltage: 200mV/2000mV/20V/200V (0. 5%+2), 500V (0. 8%+2) ★ AC Voltage: 200V/500V (2%+10) ★ DC Current: 2000A/20mA (1%+2), 200mA (1. 2%+2), 10A (2%+5) ★ Resistance: 200(0.8%+5), 2000/20K/200K (0.8%+2), 20M (1%+5), 200M [5%(reading-10)+10] ★ Package Includes:1 x Etekcity MSR-R500 Digital Multimeter; 2 x Test Leads (pair); 1 x GP Supercell 6F22 9V Battery; 1 x User's Manual ★Dimensions: 5. 1" x 2. 9" x 1. 4" ★Power: 1 x 9V 6F22 Battery Included (Low Battery Indication) ★Safety/Compliance: IEC61010 CAT. I 600V, CAT. II 300V, double insulation ax.
EAN: 0817915020210
Package Dimensions: 6.9 x 4.3 x 1.9 inches
