Brand: Eiechip
Features:

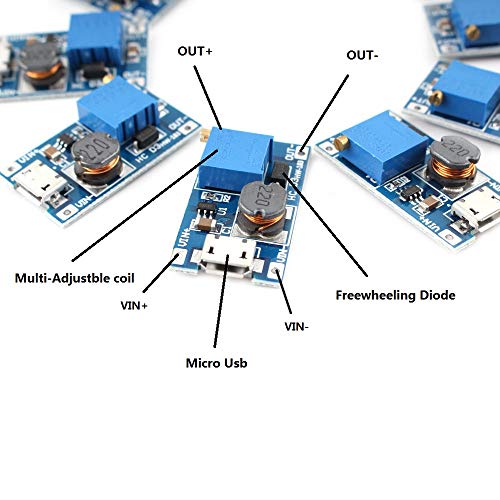

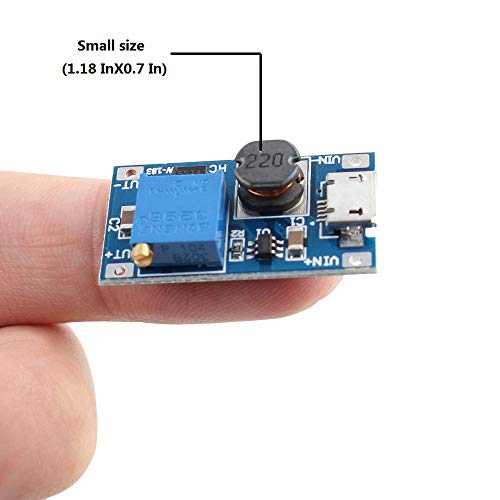

- ✔️Maximum Output Current: 2A, Board Size: 30 X 17 X 14mm/1.18 X 0.67 X 0.55inch(L*W*H).
- ✔️DC 2-24V input and 5V-28V adjustable voltage output with high power conversion efficiency up to 93%.
- ✔️Mini DC-DC voltage converter board with micro USB voltage input,just connected with USB power adapter then you can get 9V 12V 18V 24V voltge.
- ✔️MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.
- ✔️Widely used for storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 5V, 9V, 12V, 28V output, etc.
Binding: Electronics
model number: MT3608
Part Number: B8-M-MT3608-10pcs

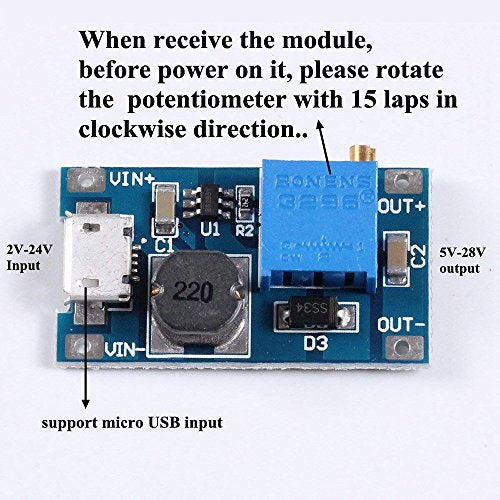

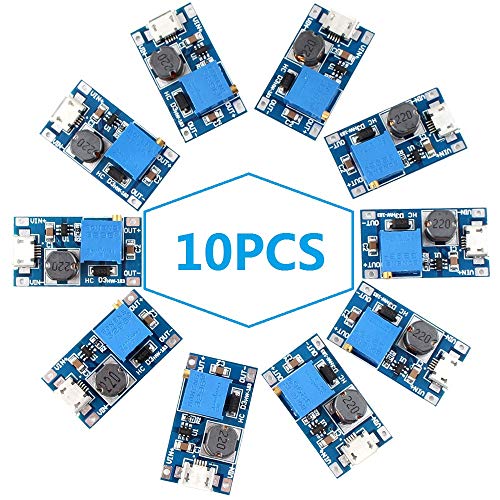

Details: Specifications: Input Voltage: DC 2V-24V Output Voltage: DC 5V-28V Maximum Output Current: 2A Maximum Conversion Efficiency: 93% Board Size: 36 X 17 X 14mm/1.42 X 0.67 X 0.55inch(L*W*H) Included: 10 X MT3608 DC Boost Converter Note: This Item with USB Connector 1.This is a boost converter module, so the output voltage should be at least 2V higher than the input voltage. 2.The peak current output current does not exceed 2A. 3.When the module output voltage can not be adjusted, always equal to the input voltage. 4.Please rotate the potentiometer counterclockwise for more than 10 turns before using the module, Normal voltage adjustment. 5.Voltage regulation: potentiometer facing the chest, counterclockwise turn boost!
EAN: 0703931863873
Package Dimensions: 4.5 x 3.5 x 1.1 inches
