Brand: International Connector
Features:
- Assembly for Solar Combiner or Power Distribution
- UL 600V Rating
- UL 6-20 AWG Rating
- UL 60A Rating

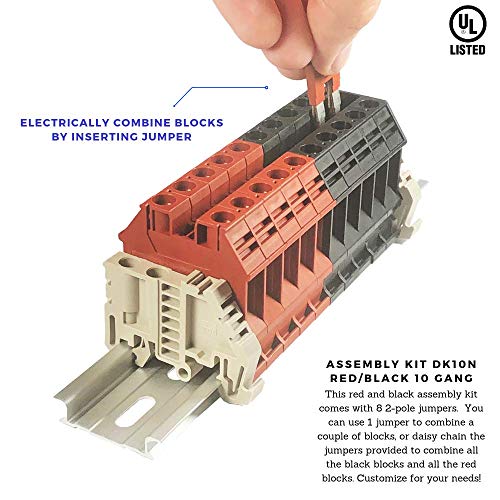

- All separate terminals made common with jumpers
Part Number: Assembly Kit DK10N Red/Black 10 Gang

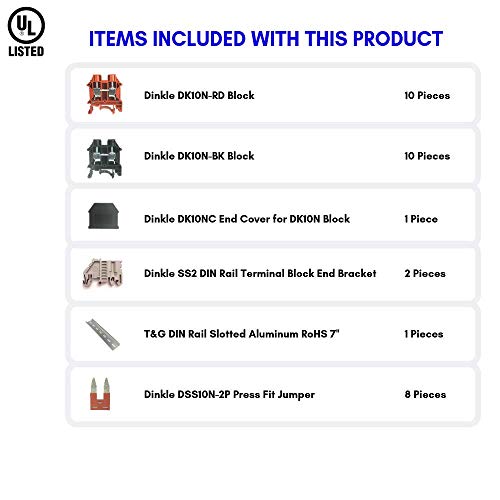

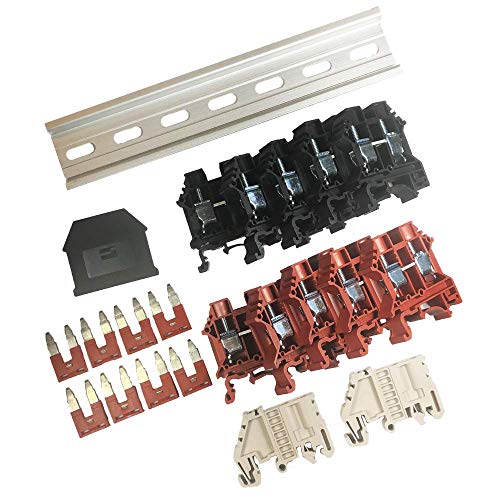

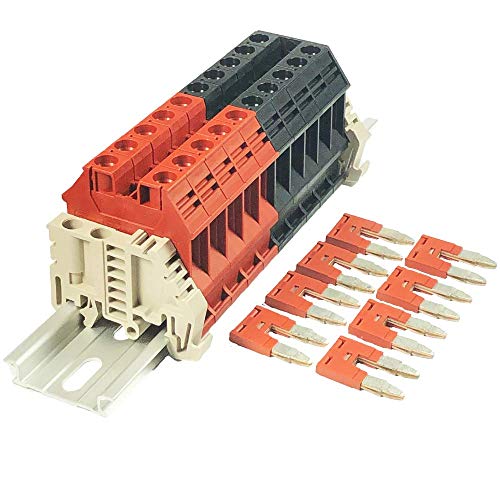

Details: This assembly kit includes 5 DK10N-BK Dinkle terminal blocks, 5 DK10N-RD Dinkle terminal blocks, 2 SS2 end brackets, and 1 DK10NC-BK end cover, 8 DSS10N-02P jumpers, all mounted on a 7" piece of aluminum RoHS rail. These are 10 separate circuits but you can use the jumpers to make them in common. Fully customizable! Technical Data (UL) Rated Voltage: 600V Rate Current: 60A Conductor Cross-section, Solid (AWG): 20-6 Conductor Cross-section, Flexible (AWG): 20-6 Rated Impulse Withstand Voltage: 8KV Torque (N-m): 1.3 Screw: M4 Wire Strip Length: 12-14mm Insulating Material: PA TxHxW (mm): 10 x 49.3 x 42.9 (Individual Blocks) DIN Rail (mm): 35, 32 Jumper/Bridge: Press-fit/Insertion.
EAN: 0737123111435
Package Dimensions: 7.7 x 3.4 x 3.1 inches
