Brand: CHTAIXI
Features:

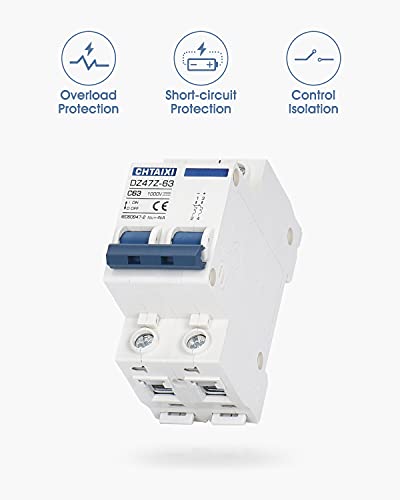

- FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
- FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.

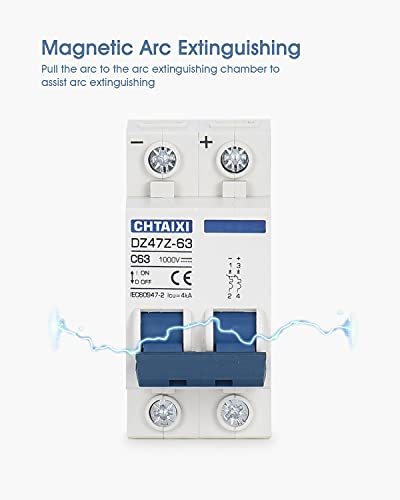

- ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.
- APPLICATION: Used in DC power system, ship electric power system, solar photovoltaic system, or other DC system.
- INSTALLATION: Screw clamp wires, 35mm DIN rail mount.
model number: DZ47Z-63
Part Number: 47Z63-2P1000

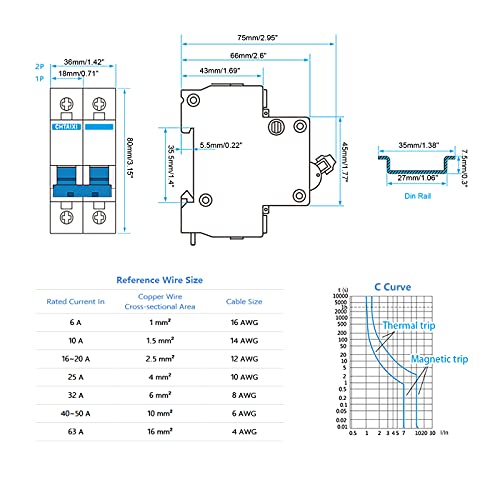

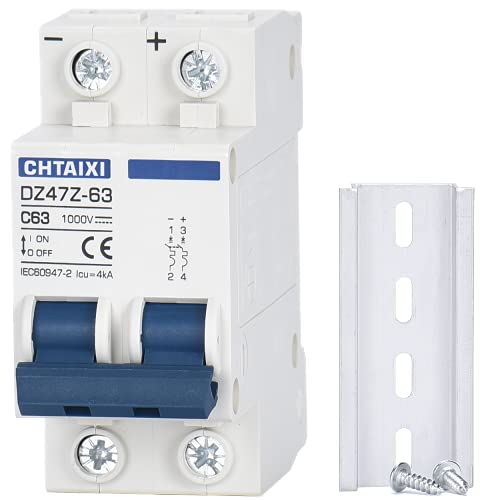

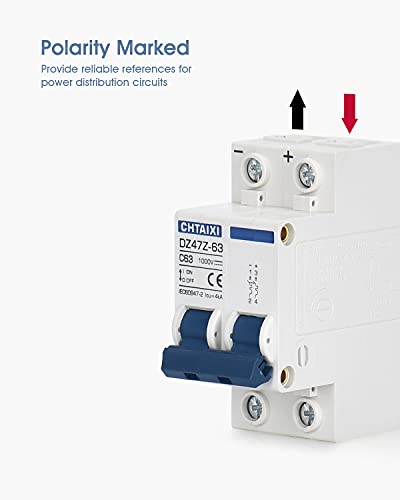

Details: Main product name: DZ47Z-63 product type：DC Miniature circuit breaker rated operational voltage: 1000 V DC rated current [In]: 63 A Poles: 2 P trip unit technology: Thermal-magnetic curve code: C breaking capacity: 4 kA Ics=Icu Complementary rated impulse withstand voltage [Uimp]: 4 kV mechanical durability: 10000 cycles electrical durability: 2000 cycles mounting support: 35 mm DIN rail net weight: 0.180 kg tightening torque: 2.5 N.m standard: IEC60947-2 operating temperature: -13°F(-25℃) ~ 140°F(60℃) operating altitude: 2000 m Installation tips Pay attention to polarity. Select wire size according to rated current. package includes: 1 x DC miniature circuit breaker 1 x DIN rail 2 x screws
Package Dimensions: 3.7 x 3.6 x 1.8 inches
