Brand: BougeRV
Color: Black
Features:
- Y Branch parallel Connector (1 male to 2 female and 1 female to 2 male)
- Main Technical Specification: -Rated Current:20A -Rated Voltage: DC1000V
- The waterproof ring on connection is perfect to seal out water and dust to prevent corrosion.
- Suitable Single Core Cable Section: 14-10AWG (1.5mm² -- 6mm²)
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Binding: Lawn & Patio
model number: ISE002FBM
Part Number: m-2
Details: Specifications:
Insulation Material: PPO
Rated Current: 20A(4mm²）
Rated Voltage: DC1000V
Contact Resistance: ≤5mΩ
Insulation Resistance: >500mΩ
Operating Temperature range: -40℃ until+90℃
Degree of Protection: IP67
Flame Class: UL94-V0
Safety Degree: Ⅱ
Suitable Single Core Cable Section: 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 )
Package included:

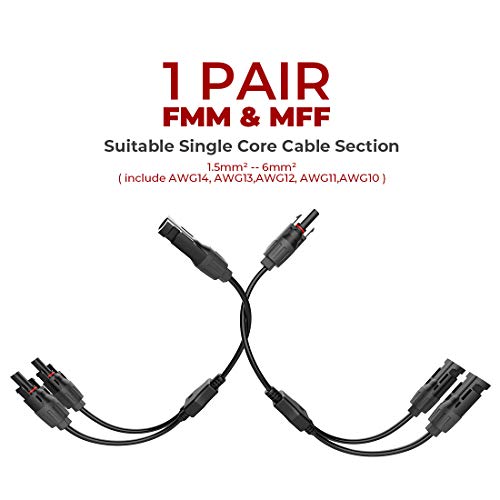

1 Pair of Y Branch MC4 Solar Panel Cable Connectors
EAN: 0720562897190
Package Dimensions: 11.7 x 2.6 x 1.0 inches
