Brand: BOJACK
Features:

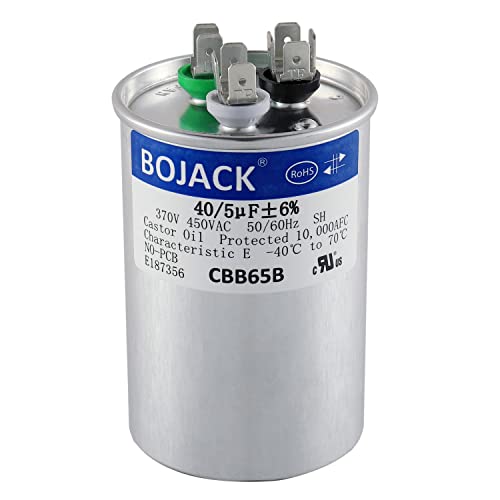

- BOJACK 40+5uF ±6% 370V/440V CBB65 Dual run circular start capacitor
- Capacitor dimension: Diameter<1.97 inch> Height <4.53 inch>
- Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
- Safety rated: 10,000 AFC

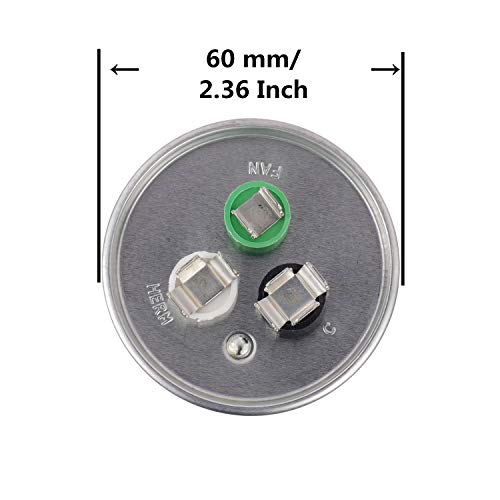

- Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
Part Number: BJ-CAP4
Details: BOJACK Dual run circular start capacitor Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor Model: CBB65（Universal model） Shell material: metal Dielectric Material: metallized polypropylene film Capacity: 40+5uf Tolerance: ±6% Rated voltage: 370V/440V AC Frequency: 50 / 60Hz Safety rated: 10,000 AFC Capacitor dimension: Diameter<1.97 inch> Height <4.53 inch> Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion. Round capacitor can be used to substitute oval shape one with the same MFD AND Volt specs.A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt.
EAN: 0768894138567
Package Dimensions: 4.7 x 2.1 x 2.1 inches
