Brand: BNTECHGO
Color: white
Features:

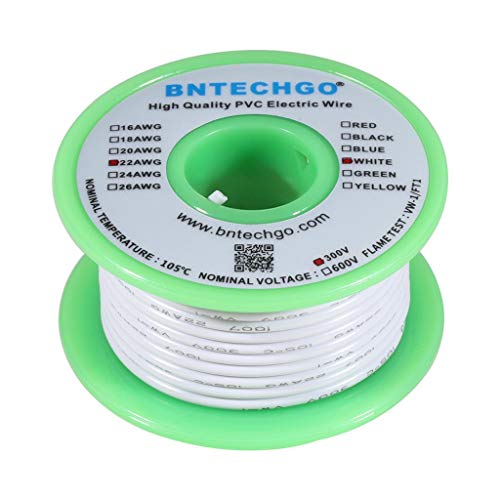

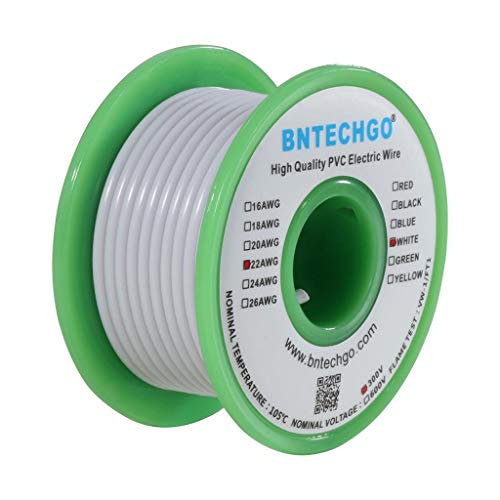

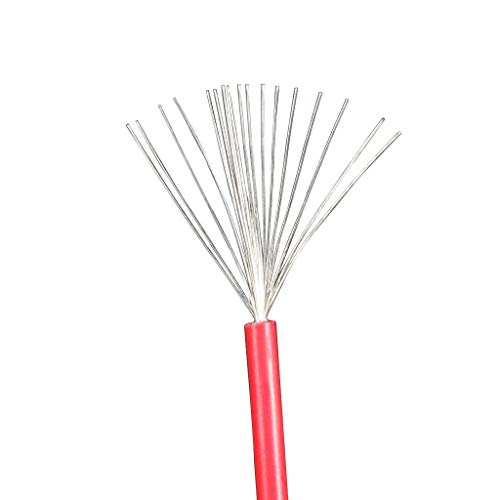

- Flexible 1007 22 AWG Hook-Up Wire: Stranded tinned copper conductor with a PVC sheath.
- Good abrasion resistance and resistance to substances such as oil,solvents and chemicals: PVC Insulation that can withstand heats of up to +105°C.
- Easy handling,stripping,and termination: Low-fray design.
- Flame retardant: VW-1.
- This hook-up wire is recommended for internal wiring of electrical or electronic equipment.
Part Number: PVC22AWG1007F25W

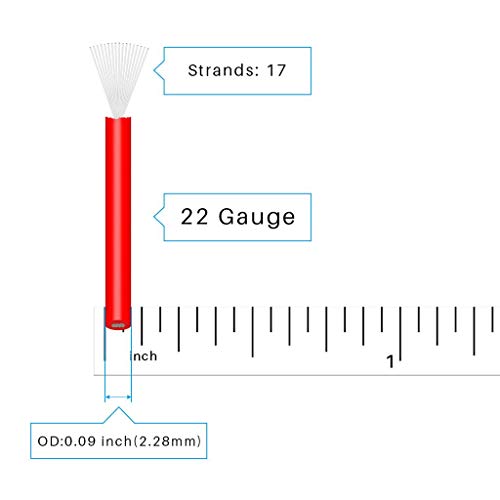

Details: Features Flexible 1007 22 AWG Hook-Up Wire: Stranded tinned copper conductor with a PVC sheath. Good abrasion resistance and resistance to substances such as oil,solvents and chemicals: PVC Insulation that can withstand heats of up to +105°C. Easy handling,stripping,and termination: Low-fray design. Flame retardant: VW-1. This hook-up wire is recommended for internal wiring of electrical or electronic equipment. Specifications Conductor AWG: 22 Conductor Material: Tinned Copper Conductor Construction: Stranded 17×0.16±0.008mm² Conductor OD: 0.76±0.08mm Insulation: PVC(Polyvinylchloride) Over Dia.: 2.28±0.1mm Jacket Colour: White Rated Temperature: 105°C Rated Voltage: 300V FLAME TEST: VW-1 Packaging: White 25ft per reel
EAN: 0619317717237
Package Dimensions: 2.8 x 2.8 x 1.7 inches
