Brand: bayite
Features:
- Test range: Voltage: DC 6.5~100V; Current: 0~100A; Power: 0~10kW; Energy: 0~9999kWh
- Store energy data when power off (can be reset to 0). The blue backlight can be turned on/off manually
- With overload alarm function (If active power is larger than threshold, backlight and power value will flash)

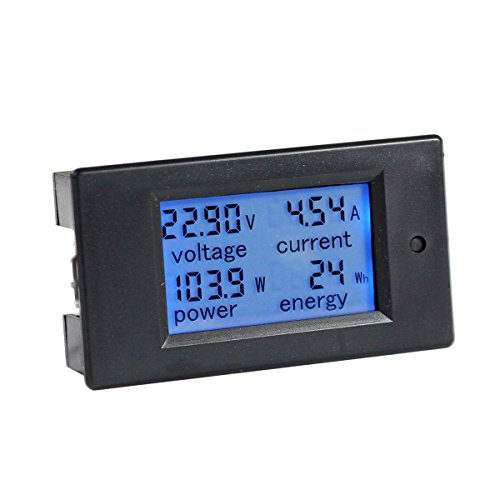

- 4 in 1 meter; Large-screen LCD (displays voltage, current, active power, energy at the same time)
- Warranty:1-year free replacement or full refund without return
Binding: Automotive
model number: PZEM-051
Part Number: B013PKYILS

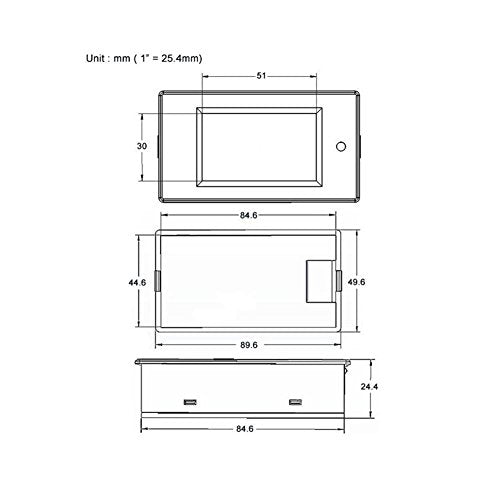

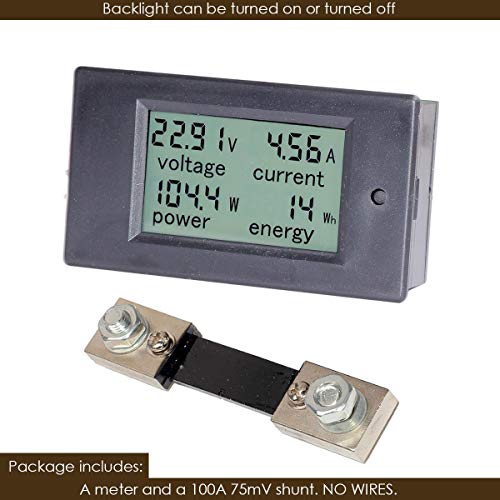

Details: Main Specifications: Recommended Cutout: 84.6mm(L)x44.6mm(W)x24.4mm(H) Working voltage: DC 6.5 ~ 100V Measuring Accuracy: 1% Power Consumption: 0.2W Measurement speed: 2 times/s Store Energy data when power off. Can be reset to 0. The blue backlight can be turned on/off manually Test Range and Display format: 1. Active Power test range: 0~10kW 2. Energy test range: 0~9999kWh 3. Voltage test range: DC 6.5~100V 4. Current test range: 0~ 100A Cautions 1. This module is only suitable for 6.5~100V DC power. 2. Applied load should not exceed the rated power. 3. Wiring order can not be wrong. 4. This module is suitable for indoor applications, please do not use outdoors. Package includes: 1x DC 6.5-100V 100A Power Multimeter 1x 100A Current Shunt Warranty: 1-year free replacement or full refund without return. If the item you have received is defective in any way, please message us for free replacement or refund without return.
EAN: 0711463670166
Package Dimensions: 4.4 x 2.8 x 1.3 inches
