Brand: Allaounion
Features:

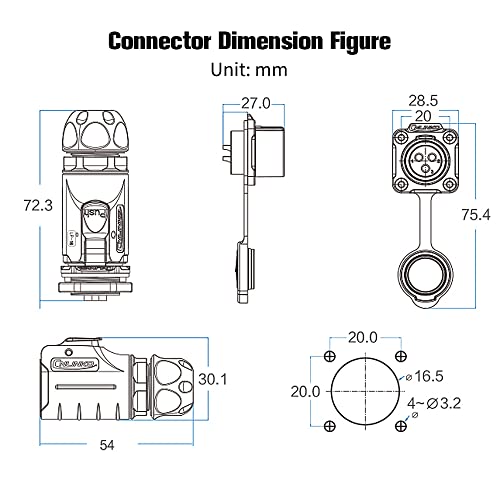

- 3 Pin Connector Specifications: The working voltage of the waterproof power connector can reach 400VAC, and the rated current is 10A. General wire diameter: Φ3.0mm～Φ9.0mm. Cable specification: 1.0 --1.5mm²/18-16 AWG. Contact resistance <2.5mΩ. Mounting dimensions: 16mm. Waterproof Protection level: IP67. Package list:2pcs( 2 male plug + 2 female socket)
- High-Quality Material: Our 3 pin connector uses a PBT material shell that imports from abroad with stability, compression, anti-explosion, and anti-deformation. Use zinc alloy material flanges seat, against high-frequency noise and electromagnetic interference. Using gold-plated contact with the superior performance of corrosion resistance and electrical conductivity effectively deals with temperature rise.

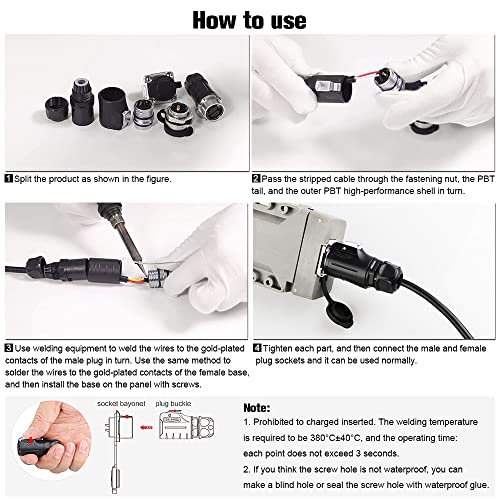

- Easy to Install Circular Connector: Cable connection type: Soldering. Cable in-line, threaded coupling, quick connect, solder plug & socket. Note: Prohibited to charged inserted. The wiring welding temperature requirement is 380℃±40℃, operation time: each point does not exceed 3 seconds.
- Perfect Waterproof Aviation Connector: The waterproof connector can be up to waterproof IP67 protection level when connected, its rigid spring snap fastening self-locking device waterproof ring is well in water-resisting. Even in harsh outdoor weather conditions, it can still be in a good state of waterproof performance. High quality ensures that your industrial equipment works well without being affected.
- Wide Application Power Connector: 2 pin wire connector is ideal for any equipment for watertight, indoor/outdoor applications, such as outdoor electric tools or appliances, medical device, audio/video, robot, RV solar, communications, marine or automatic equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines equipment, packing machines, etc.

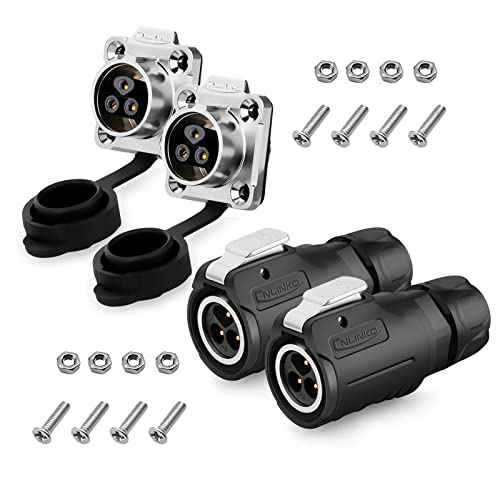

Part Number: LP-16-3PIN-2PCS
Package Dimensions: 4.0 x 2.8 x 1.2 inches
