Brand: Haerkn
Features:

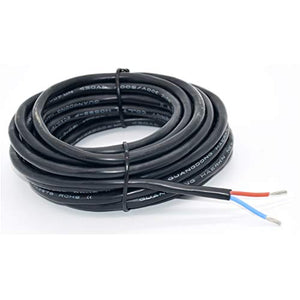

- 18AWG / 2 Conductors (18/2;0.75mm²): Total 20 feet; Colors: Blue and Brown
- 18 Gauge silicone wire - super flexible 24 strands of 0.2 mm Tinned copper wire - Highly efficient - Super low impedance for a highly efficient connection.
- High Temperature Resistant Silicone Wire.Temp: -60 degree celsius +180 degree celsius
- Nominal Voltage 300/500V；Bear Current: 7A
- Conductor: High-purity oxygen-free Tinned Copper
Part Number: Haerkn

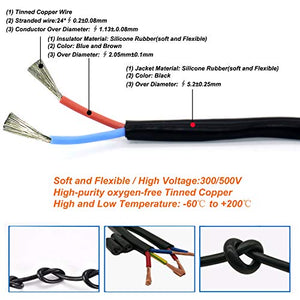

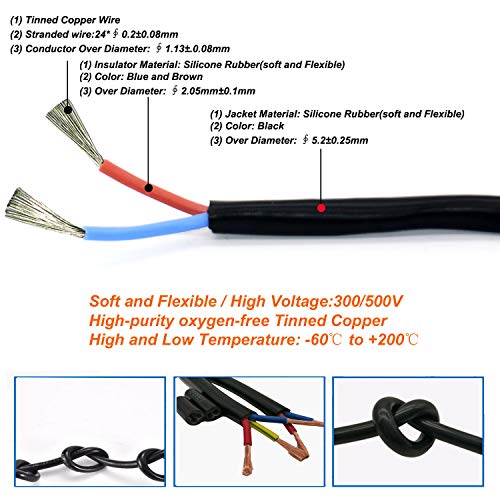

Details: Type: 18/2 Awg(0.75mm²) 2 cores wire：Total 20 feet Colors: Blue,Brown Nominal Voltage: 300/500V Testing Voltage:5KV Temperature Range:-60 Deg C to 180 Deg C Conductor: Tinned Copper Insulator: Silicone Rubber Conductor: (1) Gauge:18AWG(0.75mm²) (2) Copper Number/Wire Diameter:24/0.2±0.008mm (3) Diameter: ∮1.13±0.08mm Insulator: (1) Material: Silicone Rubber (2) Color: Blue,Brown (3) Jacket Thick:0.46mm (4) Over Diameter:∮2.05±0.1mm Jacket: (1) Material: Silicone Rubber (2) Color: Black (3) AVG Thickness of Insu: 0.55mm (4) Min Thickness of Insu: 0.4mm (5) Over Diameter: ∮5.2±0.25mm Bear Current:7A Marking: GUANGDONG HAERKN NEW ENERGY CO.,LTD H05SS-F 2C×0.75mm2 180℃ 300V/500V >VDE
EAN: 0652890996651
Package Dimensions: 5.7 x 5.0 x 1.7 inches
